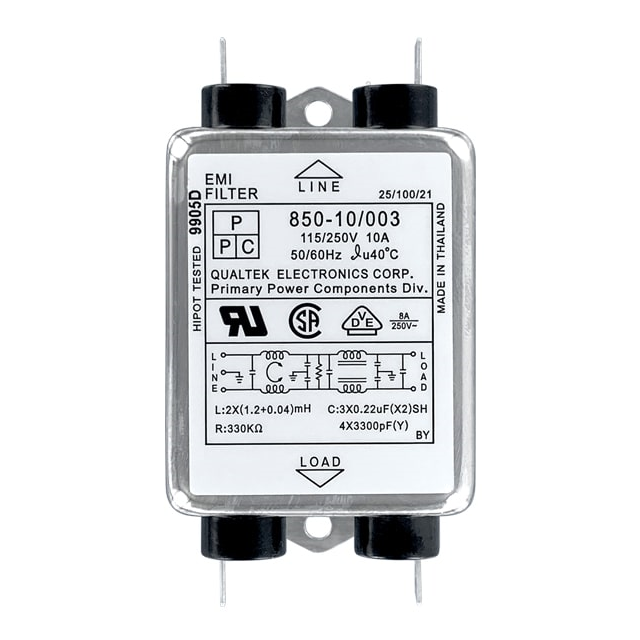

850-10/003
ActiveQualtek
LINE FILTER 115V/250VAC 10A CHAS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
850-10/003
ActiveQualtek
LINE FILTER 115V/250VAC 10A CHAS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 850-10/003 |
|---|---|
| Applications | General Purpose |
| Approval Agency | VDE, CSA, UR |
| Configuration | Two Stage |
| Current | 10 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 1.2 mH, 40 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 115 V, 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 20.75 | |
| 10 | $ 20.10 | |||
| 30 | $ 19.45 | |||
| 40 | $ 18.80 | |||
| 80 | $ 16.86 | |||
| 230 | $ 16.21 | |||
| 440 | $ 16.05 | |||
Description
General part information
850-10 Series
Single Phase EMC/EMI Line Filter 10 A 115V, 250V 50/60Hz Two Stage Quick Connect
Documents
Technical documentation and resources
