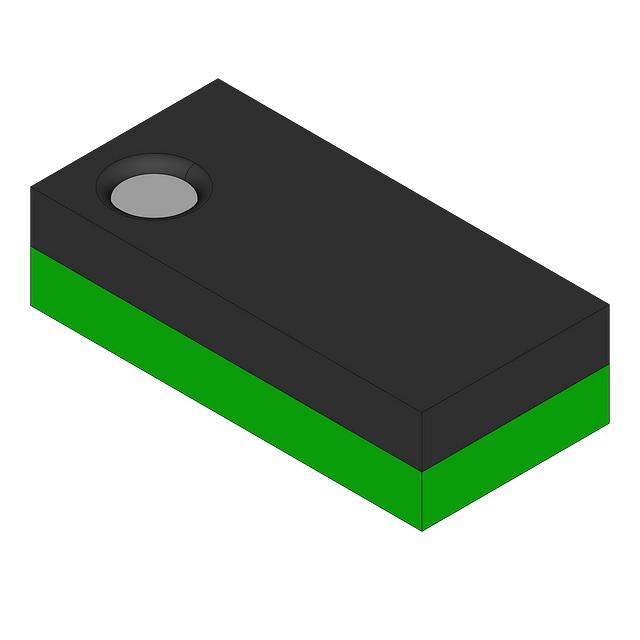

LP3986TL-3333/NOPB

Active

National Semiconductor

IC REG LINEAR FIXED POS LDO REG

Search across all available documentation for this part.

Active

National Semiconductor

IC REG LINEAR FIXED POS LDO REG

Technical Specifications

Parameters and characteristics for this part

Specification	LP3986TL-3333/NOPB

Control Features	Enable
Current - Output	150 mA
Current - Quiescent (Iq)	130 µA
Current - Supply (Max) [Max]	320 µA
Mounting Type	Surface Mount
Number of Regulators	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	8-WFBGA, DSBGA
Protection Features	Over Temperature, Over Current, Short Circuit
PSRR [Max]	60 dB
PSRR [Min]	50 dB
Supplier Device Package	8-DSBGA (1.56x1.56)
Voltage - Input (Max) [Max]	6 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.1 V

Part	Current - Output	Protection Features	Voltage - Output (Min/Fixed)	Output Type	Control Features	Voltage Dropout (Max) [Max]	Package / Case	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Mounting Type	Supplier Device Package	Output Configuration	PSRR [Max]	PSRR [Min]	Number of Regulators	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
National Semiconductor LP3986TL-3333/NOPB	150 mA	Over Current Over Temperature Short Circuit	3.3 V	1.81 mOhm	Enable	0.1 V	8-WFBGA DSBGA	130 µA	6 V	Surface Mount	8-DSBGA (1.56x1.56)	Positive	60 dB	50 dB	2	320 µA	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	701	$ 0.43

General part information

Linear Voltage Regulator IC Positive Fixed 2 Output 150mA 8-DSBGA (1.56x1.56)

Technical documentation and resources

No documents available
