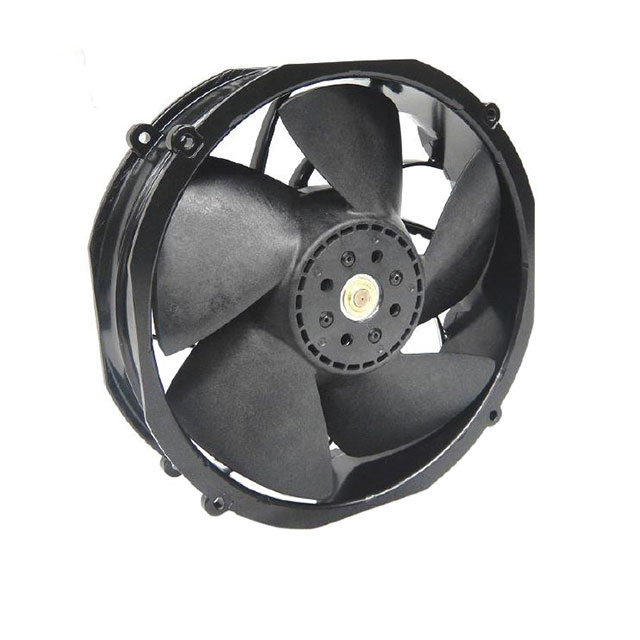

R200A0-051-D0760
ActiveNMB TECHNOLOGIES
FAN AXIAL 200X51MM 48VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R200A0-051-D0760 |
|---|---|
| Air Flow | 783 CFM |
| Air Flow | 21.92 mł/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 2.9 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 74 dB(A) |
| Operating Temperature [Max] [custom] | 70 °C |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -30 °C |
| Operating Temperature [Min] [custom] | -22 °F |
| Power (Watts) | 139.2 W |
| RPM | 6500 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 200 mm |
| Static Pressure | 4.12 in H2O |
| Static Pressure | 1028 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 72 VDC |
| Voltage Range [Min] | 30 VDC |
| Weight | 2.6 lbs |
| Weight | 1.2 kg |
| Width [y] | 51 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 215.45 | |
| 10 | $ 198.44 | |||
| 30 | $ 185.68 | |||
| 50 | $ 182.85 | |||
Description
General part information
R200A0 Series
Fan Tubeaxial 48VDC Round - 200mm Dia Ball 783.0 CFM (21.92mł/min) 4 Wire Leads
