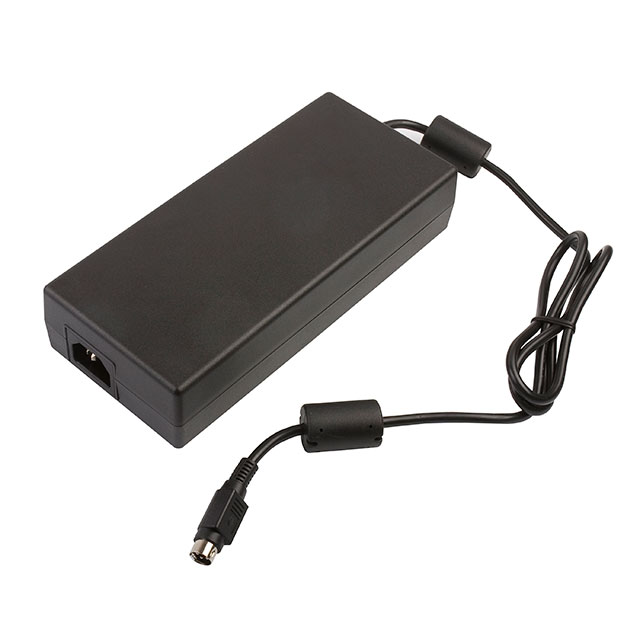

AHE220PS12
ObsoleteXP POWER
AC/DC DESKTOP ADAPTER 12V 180W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AHE220PS12
ObsoleteXP POWER
AC/DC DESKTOP ADAPTER 12V 180W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AHE220PS12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB |
| Cord Length | 0.95 m |
| Cord Length | 37.4 " |
| Current - Output (Max) [Max] | 15 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 210 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | 4 Pin |
| Output Connector | Power DIN |
| Power (Watts) | 180 W |
| Region Utilized | International |
| Size / Dimension [x] | 197 mm |
| Size / Dimension [x] | 7.76 " |
| Size / Dimension [y] | 88 mm |
| Size / Dimension [y] | 3.46 " |
| Size / Dimension [z] | 1.73 " |
| Size / Dimension [z] | 44 mm |
| Standard Number | 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
| Weight | 2.4 lbs |
| Weight | 1.1 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 135.60 | |
| 5 | $ 131.53 | |||
| 10 | $ 127.46 | |||
| 25 | $ 122.04 | |||
| 100 | $ 113.90 | |||
Description
General part information
AHE220 Series
12V 180 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
