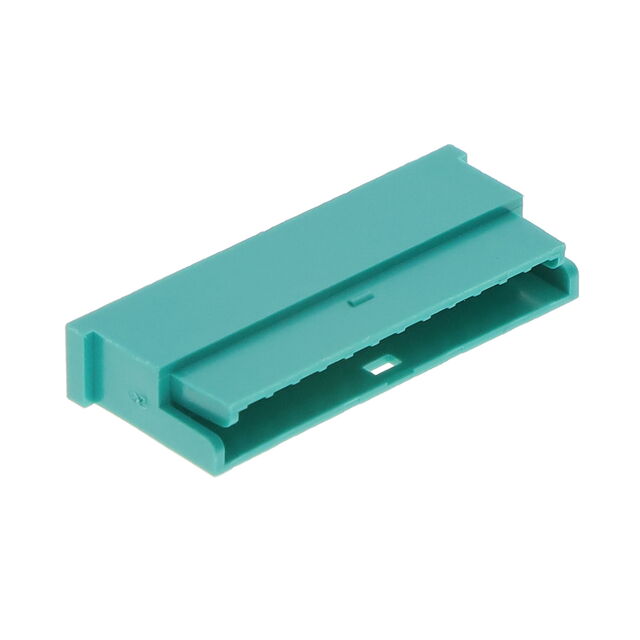

609021312410000

Active

Kyocera AVX

CONN RCPT HSG 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

609021312410000

Active

Kyocera AVX

CONN RCPT HSG 12POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	609021312410000

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

609021 Series

Part	Connector Type	Insulation Material	Color	Contact Type	Fastening Type	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Number of Positions	Contact Termination	Note	Row Spacing [x]	Row Spacing	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Type	Pin or Socket
Kyocera AVX 609021304410000	Receptacle	Thermoplastic	Green	Female Socket	Locking Ramp	2.54 mm	0.1 in	Free Hanging (In-Line)	1	4	Crimp	Contacts Not Included
Kyocera AVX 609021310816000	Receptacle	Thermoplastic	Green	Female Socket	Locking Ramp	2.54 mm	0.1 in	Panel Mount Snap-In	1	10	Crimp	Contacts Not Included
Kyocera AVX 609021330420000	Receptacle	Thermoplastic	Green	Female Socket	Locking Ramp	2.54 mm	0.1 in	Free Hanging (In-Line)	2	30	Crimp	Contacts Not Included	0.1 in	2.54 mm
Kyocera AVX 609021031300891											Crimp				28 AWG	22 AWG	0.76 Ám	30 Áin	Gold	Stamped	Socket
Kyocera AVX 609021312410000	Receptacle	Thermoplastic	Green	Female Socket	Locking Ramp	2.54 mm	0.1 in	Free Hanging (In-Line)	1	12	Crimp	Contacts Not Included
Kyocera AVX 609021032399891											Crimp				28 AWG	22 AWG	0.76 Ám	30 Áin	Gold	Stamped	Socket
Kyocera AVX 609021310410000	Receptacle	Thermoplastic	Green	Female Socket	Locking Ramp	2.54 mm	0.1 in	Free Hanging (In-Line)	1	10	Crimp	Contacts Not Included
Kyocera AVX 609021031300853											Crimp				28 AWG	22 AWG	0.2 µm	7.87 µin	Gold	Stamped	Socket
Kyocera AVX 609021340420000	Receptacle	Thermoplastic	Green	Female Socket	Locking Ramp	2.54 mm	0.1 in	Free Hanging (In-Line)	2	40	Crimp	Contacts Not Included	0.1 in	2.54 mm
Kyocera AVX 609021336420000	Receptacle	Thermoplastic	Green	Female Socket	Locking Ramp	2.54 mm	0.1 in	Free Hanging (In-Line)	2	36	Crimp	Contacts Not Included	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.41
		10	$ 2.60
		25	$ 2.43
		40	$ 2.16
		80	$ 2.11
		230	$ 1.95
		440	$ 1.76
		1000	$ 1.56
		5000	$ 1.47

Description

General part information

609021 Series

12 Rectangular Connectors - Housings Receptacle Green 0.100" (2.54mm)
