HLS27DW0285C
ActiveBANNER ENGINEERING

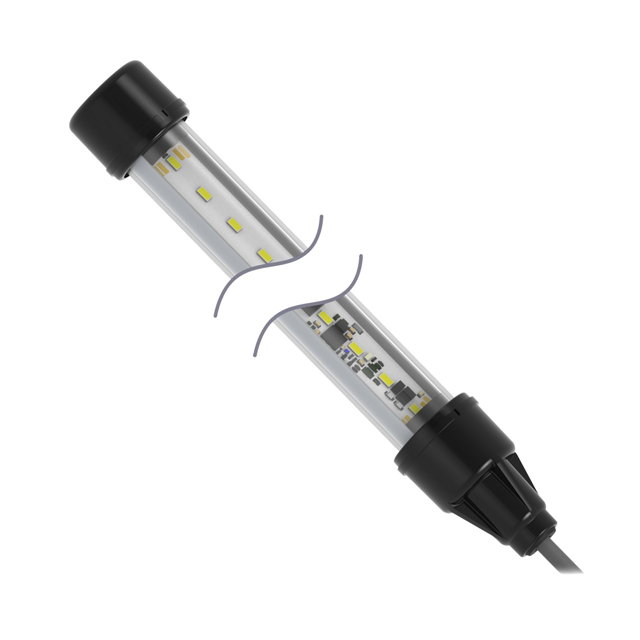

LED LIGHT BAR, COOL WHITE, 850 LM, 30 VDC, 370 MM, IP66, IP67
Deep-Dive with AI
Search across all available documentation for this part.
HLS27DW0285C
ActiveBANNER ENGINEERING
LED LIGHT BAR, COOL WHITE, 850 LM, 30 VDC, 370 MM, IP66, IP67
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HLS27DW0285C |
|---|---|
| Approval Agency | cULus, CE |
| Features | High/Low/Off Switching |
| Housing Material | Aluminum (Al) |
| Illumination Color | White, Cool |
| Ingress Protection | IP66/IP67 |
| Lens Type | Tubular, Clear |
| Luminous Flux | 850 lm |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Profile (W x H) [x] | 1.5 " |
| Profile (W x H) [x] | 38.1 mm |
| Profile (W x H) [y] | 1.5 " |
| Profile (W x H) [y] | 38.1 mm |
| Rated Life | 50000 Hours |
| Termination Style | Cable Leads |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HLS27DW0285 Series
LED LIGHT BAR, COOL WHITE, 850 LM, 30 VDC, 370 MM, IP66, IP67
