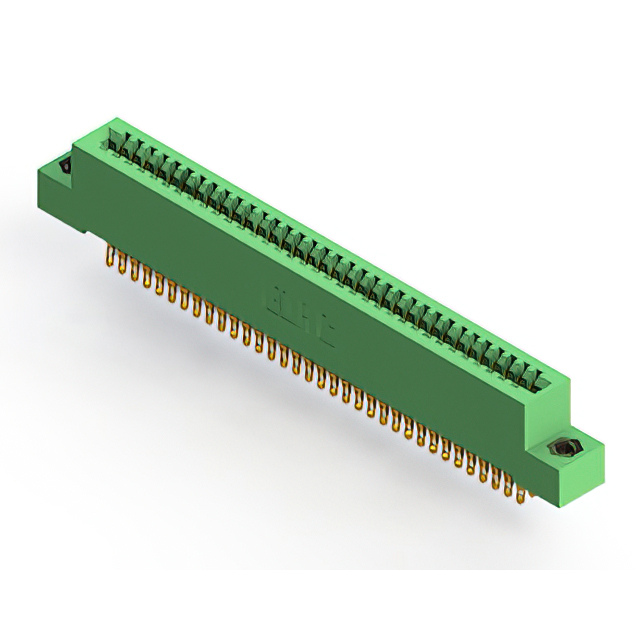

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 68 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
342-068-555-207
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 68 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-068-555-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 68 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
342-068 Series
| Part | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Termination | Contact Finish | Color | Contact Type | Pitch [x] | Pitch [x] | Read Out | Contact Finish Thickness | Contact Finish Thickness | Gender | Material - Insulation | Mounting Type | Number of Rows | Number of Positions | Number of Positions/Bay/Row [custom] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Solder | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Dual | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | Through Hole | 2 | 68 | 34 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | |
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Wire Wrap | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Dual | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | Through Hole | 2 | 68 | 34 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | |||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Solder Eyelet(s) | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Dual | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | Board Edge Straddle Mount | 2 | 68 | 34 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Card Extender | ||
EDAC Inc. | Wire Wrap | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Dual | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | Through Hole | 2 | 68 | 34 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | ||||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Solder | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Dual | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | Board Edge Straddle Mount | 2 | 68 | 34 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Card Extender | ||
EDAC Inc. | Solder Eyelet(s) | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Dual | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | Board Edge Straddle Mount | 2 | 68 | 34 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Card Extender | |||
EDAC Inc. | Solder Wire Wrap | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Dual | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | Through Hole Right Angle | 2 | 68 | 34 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | ||||
EDAC Inc. | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Wire Wrap | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Dual | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | Through Hole | 2 | 68 | 34 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | |
EDAC Inc. | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Wire Wrap | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Dual | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | Through Hole | 2 | 68 | 34 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | |
EDAC Inc. | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Solder Eyelet(s) | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Dual | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | Board Edge Straddle Mount | 2 | 68 | 34 | Copper Alloy | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
342-068 Series
68 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
