SMAZ15-TP
ActiveMicro Commercial Components

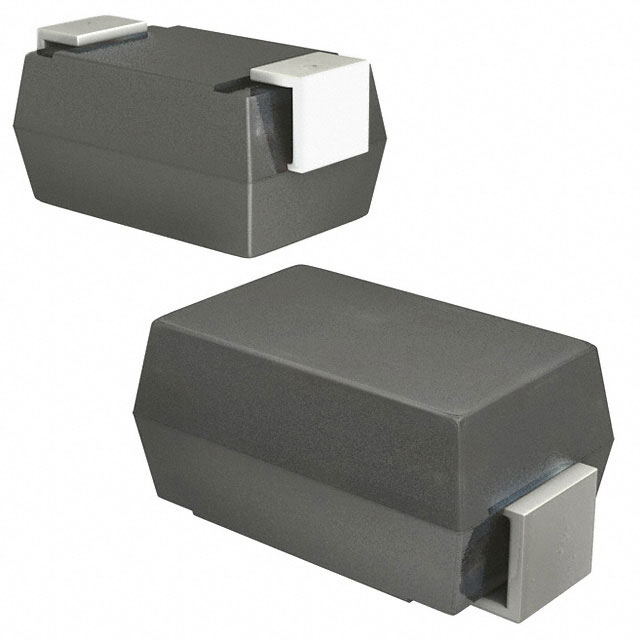

DIODE ZENER 15V 1W DO214AC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMAZ15-TP
ActiveMicro Commercial Components
DIODE ZENER 15V 1W DO214AC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMAZ15-TP |
|---|---|
| Current - Reverse Leakage @ Vr | 1 µA |
| Impedance (Max) (Zzt) | 10 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | DO-214AC, SMA |
| Power - Max [Max] | 1 W |
| Supplier Device Package | DO-214AC (SMAJ) |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V |
| Voltage - Zener (Nom) (Vz) | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.08 | |||
| Tape & Reel (TR) | 7500 | $ 0.08 | ||
| 15000 | $ 0.07 | |||
| 37500 | $ 0.07 | |||
| 52500 | $ 0.05 | |||
| 187500 | $ 0.05 | |||
Description
General part information
SMAZ15 Series
Zener Diode 15 V 1 W ±5% Surface Mount DO-214AC (SMAJ)
