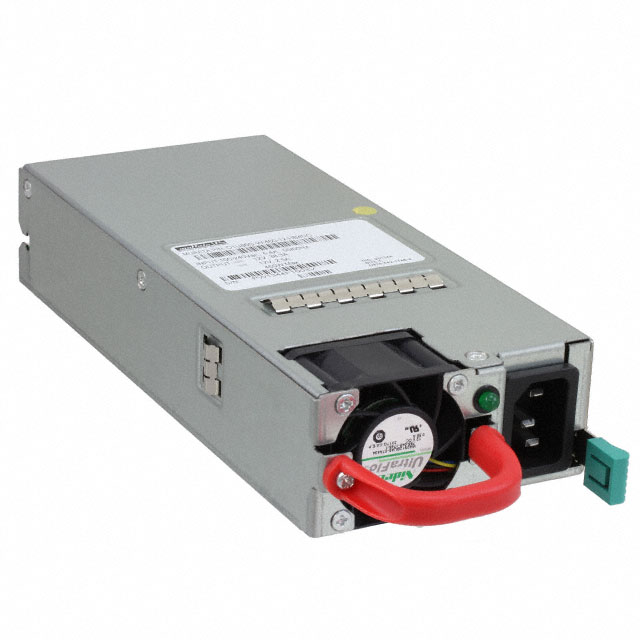

D1U86G-W-460-12-HB4DC

NRND

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 460W

Search across all available documentation for this part.

NRND

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 460W

Technical Specifications

Parameters and characteristics for this part

Specification	D1U86G-W-460-12-HB4DC

Applications	ITE (Commercial)
Current - Output 1	38.3 A
Efficiency	92 %
Features	I2C Interface, Hot Swappable, Load Sharing, Standby Output, Remote Sense, PFC, Universal Input
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	460 W
Size / Dimension [x]	241.6 mm
Size / Dimension [x]	9.52 in
Size / Dimension [y]	3.4 in
Size / Dimension [y]	86.4 mm
Size / Dimension [z]	40.5 mm
Size / Dimension [z]	1.6 "
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Mounting Type	Voltage - Isolation	Features	Type	Power (Watts)	Applications	Voltage - Output 1	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output 1	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]
Murata Power Solutions Inc. D1U86G-W-460-12-HB4DC	Rack Mount	3000 V	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	Front End	460 W	ITE (Commercial)	12 V	92 %	3.4 in	40.5 mm	86.4 mm	241.6 mm	9.52 in	1.6 "	38.3 A	1	90 VAC	264 VAC
Murata Power Solutions Inc. D1U86G-W-460-12-HB3DC	Rack Mount	3000 V	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	Front End	460 W	ITE (Commercial)	12 V	92 %	3.4 in	40.5 mm	86.4 mm	241.6 mm	9.52 in	1.6 "	38.3 A	1	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	45	$ 242.45

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
