109P0424H702

Active

Sanyo Denki America Inc.

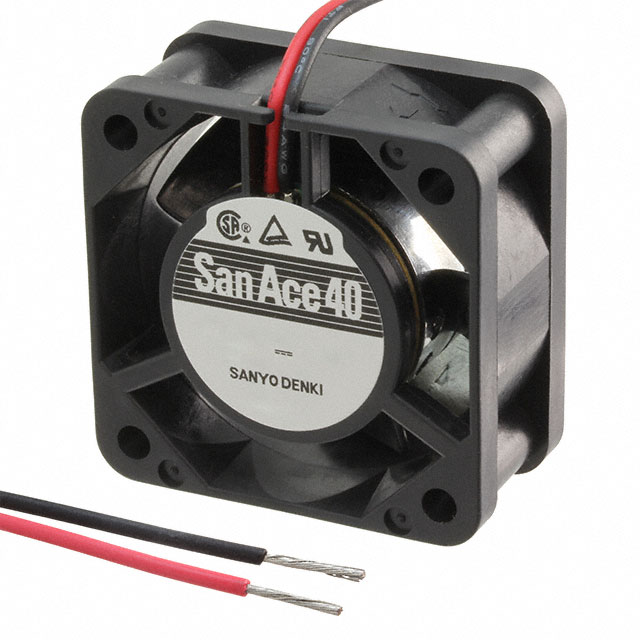

FAN AXIAL 40X15MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Handling Instructions for Fan Motors +1

109P0424H702

Active

Sanyo Denki America Inc.

FAN AXIAL 40X15MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Handling Instructions for Fan Motors +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109P0424H702

Air Flow	6.4 CFM
Air Flow	0.179 mł/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	28 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.92 W
RPM	7700 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.303 in H2O
Static Pressure	75.5 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	0.071 lb
Weight	32.21 g
Width [x]	15 mm

109P0424 Series

Part	RPM	Current Rating (Amps)	Material - Frame	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type	Noise	Power (Watts)	Termination	Approval Agency	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Material - Blade	Width [y]	Air Flow	Air Flow	Weight	Weight	Fan Type	Features	Lifetime @ Temp.	Width [x]
Sanyo Denki America Inc. 109P0424H3D013	8700 RPM	0.095 A	Plastic	40 mm	Square	40 mm	Ball	37 dB	2.28 W	3 Wire Leads	CSA TUV UL	24 VDC	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	12 VDC	102.9 Pa	0.414 in H2O	Plastic	28 mm	0.316 m³/min	11.3 CFM	0.115 lb	52.16 g	Tubeaxial	Locked Rotor Sensor
Sanyo Denki America Inc. 109P0424G602	12500 RPM	150 mA	Plastic	40 mm	Square	40 mm	Ball	44 dB	3.6 W	2 Wire Leads	CSA TUV UL	24 VDC	-20 °C	60 °C	-20 C	60 °C	27.6 VDC	12 VDC	153.8 Pa	0.618 in H2O	Plastic	20 mm	0.347 m³/min	12.4 CFM	0.101 lb	45.81 g	Tubeaxial		40000 Hrs
Sanyo Denki America Inc. 109P0424G3013	11500 RPM	0.19 A	Plastic	40 mm	Square	40 mm	Ball	42 dB	4.56 W	3 Wire Leads	CSA TUV UL	24 VDC	-20 °C	60 °C	-20 C	60 °C	26.4 VDC	12 VDC	179 Pa	0.719 in H2O	Plastic	28 mm	0.414 mł/min	14.8 CFM	0.115 lb	52.16 g	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	40000 Hrs
Sanyo Denki America Inc. 109P0424H702	7700 RPM		Plastic	40 mm	Square	40 mm	Ball	28 dB	1.92 W	2 Wire Leads	CSA TUV UL	24 VDC	-20 °C	70 °C	-20 C	70 °C			75.5 Pa	0.303 in H2O	Plastic		0.179 mł/min	6.4 CFM	0.071 lb	32.21 g	Tubeaxial			15 mm
Sanyo Denki America Inc. 109P0424H3143	8700 RPM	140 mA	Plastic	40 mm	Square	40 mm	Ball	37 dB		3 Position Rectangular Connector	CSA TUV UL	24 VDC	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	12 VDC			Plastic	28 mm			0.115 lb	52.16 g	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109P0424F3023	6700 RPM	0.055 A	Plastic	40 mm	Square	40 mm	Ball	30 dB(A)	1.32 W	2 Wire Leads	CSA TUV UL	24 VDC	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	14 VDC	58.8 Pa	0.236 in H2O	Plastic	28 mm	0.241 mł/min	8.6 CFM	0.115 lb	52.16 g	Tubeaxial
Sanyo Denki America Inc. 109P0424G3D013	11500 RPM	0.19 A	Plastic	40 mm	Square	40 mm	Ball	42 dB	4.56 W	3 Wire Leads	CSA TUV UL	24 VDC	-20 °C	60 °C	-20 C	60 °C	26.4 VDC	12 VDC	179 Pa	0.719 in H2O	Plastic	28 mm	0.414 mł/min	14.8 CFM	0.115 lb	52.16 g	Tubeaxial	Locked Rotor Sensor	40000 Hrs
Sanyo Denki America Inc. 109P0424F602	6500 RPM	60 mA	Plastic	40 mm	Square	40 mm	Ball	28 dB	1.44 W	2 Wire Leads	CSA TUV UL	24 VDC	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	14 VDC	45.1 Pa	0.181 in H2O	Plastic	20 mm	0.182 m³/min	6.5 CFM	0.101 lb	45.81 g	Tubeaxial
Sanyo Denki America Inc. 109P0424J3023	12500 RPM	0.18 A	Plastic	40 mm	Square	40 mm	Ball	44 dB	4.32 W	2 Wire Leads	CSA TUV UL	24 VDC	-20 °C	60 °C	-20 C	60 °C	26.4 VDC	12 VDC	210 Pa	0.843 in H2O	Plastic	28 mm	0.454 m³/min	16.2 CFM	0.115 lb	52.16 g	Tubeaxial		40000 Hrs
Sanyo Denki America Inc. 109P0424D601	11000 RPM		Plastic	40 mm	Square	40 mm	Ball	42 dB	3.12 W	3 Wire Leads	CSA TUV UL	24 VDC	-20 °C	60 °C	-20 C	60 °C	27.6 VDC	12 VDC	124 Pa	0.498 in H2O	Plastic	20 mm	0.305 mł/min	10.9 CFM	0.101 lb	45.81 g	Tubeaxial	Speed Sensor (Tach)	40000 Hrs
