XHP35A-00-0000-0D0BE450E-SB01

Obsolete

New Energy

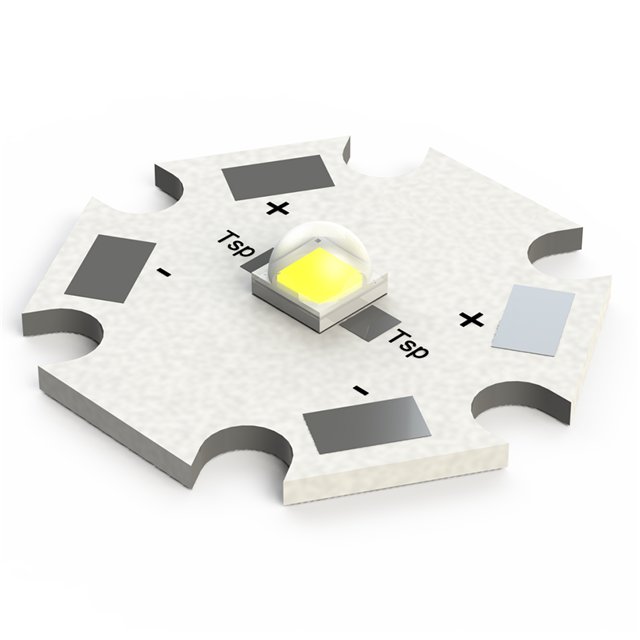

LED MOD XLAMP WH STARBOARD 5000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXHP35 LEDs Datasheet Datasheet

XHP35A-00-0000-0D0BE450E-SB01

Obsolete

New Energy

LED MOD XLAMP WH STARBOARD 5000K

Deep-Dive with AI

DocumentsXHP35 LEDs Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XHP35A-00-0000-0D0BE450E-SB01

CCT (K)	5000 K
CCT (K)	5-Step MacAdam Ellipse
Color	Cool, White
Configuration	Starboard
CRI (Color Rendering Index)	70
Current - Max [Max]	1.05 A
Current - Test	350 mA
Lens Type	Domed
Lumens/Watt @ Current - Test	166 lm/W
Luminous Flux @ Current/Temperature	658 lm
Size / Dimension [diameter]	19.89 mm
Temperature - Test	85 °C
Type	LED Module
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	11.3 V

XHP35A Series

Part	Type	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Configuration	Lens Type	Current - Max [Max]	Height [z]	Temperature - Test	Color	Current - Test	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	CCT (K)	Size / Dimension [diameter]	Voltage - Forward (Vf) (Typ)	Viewing Angle
New Energy XHP35A-0R-08-0D0HD457E	LED Module	5700 K	110.39 mm	45.01 mm	Rectangle	Flat	2.1 A	1.52 mm	85 °C	Cool White
New Energy XHP35A-0R-08-0D0HD440E	LED Module	4000 K	110.39 mm	45.01 mm	Rectangle	Flat	2.1 A	1.52 mm	85 °C	Neutral White
New Energy XHP35A-0R-04-0D0HD457E	LED Module	5700 K	59.59 mm	45.01 mm	Rectangle	Flat	1.05 A	1.52 mm	85 °C	Cool White	350 mA
New Energy XHP35A-0R-08-0D0BE240E	LED Module	4000 K	107.95 mm	44.96 mm	Rectangle	Domed	2.1 A		85 °C	Neutral White		149 lm/W	4720 lm	70
New Energy XHP35A-00-0000-0D0BE450E-SB01	LED Module	5000 K			Starboard	Domed	1.05 A		85 °C	Cool White	350 mA	166 lm/W	658 lm	70	5-Step MacAdam Ellipse	19.89 mm	11.3 V	125 °
New Energy XHP35A-0R-12-0D0BE240E	LED Module	4000 K	146.56 mm	44.96 mm	Rectangle	Domed	3.15 A		85 °C	Neutral White	1.05 A	149 lm/W	7080 lm	70
New Energy XHP35A-H0-0000-0D0BC440E-SB01	LED Module	4000 K			Starboard	Flat	1.05 A		85 °C	Neutral White	350 mA	125 lm/W	493 lm	70		19.89 mm	11.3 V	115 °
New Energy XHP35A-0R-04-0D0HC427E	LED Module	2700 K	2.25 in	44.96 mm	Rectangle	Domed	1.05 A		85 °C	Warm White	350 mA	120 lm/W	1900 lm	80
New Energy XHP35A-0R-04-0D0HD450E	LED Module	5000 K	59.59 mm	45.01 mm	Rectangle	Flat	1.05 A	1.52 mm	85 °C	Cool White	350 mA				5-Step MacAdam Ellipse
New Energy XHP35A-H0-0000-0D0BC450E-SB01	LED Module	5000 K			Starboard	Flat	1.05 A		85 °C	Cool White	350 mA	125 lm/W	493 lm	70	5-Step MacAdam Ellipse	19.89 mm	11.3 V	115 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XHP35A Series

LED Lighting COBs Engines Modules LED Module Xlamp® XHP35 White, Cool Starboard

Documents

Technical documentation and resources

XHP35 LEDs Datasheet

Datasheet
