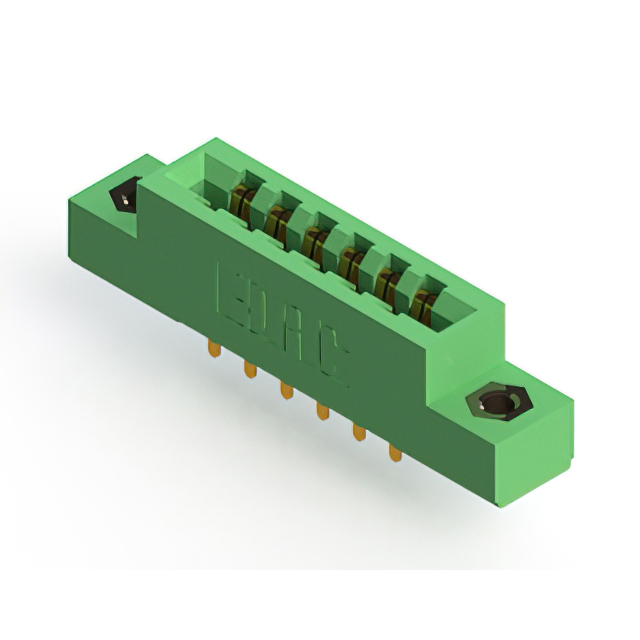

315-012-521-207
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
315-012-521-207
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 315-012-521-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
315-012 Series
| Part | Card Type | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Gender | Number of Positions | Termination | Number of Positions/Bay/Row [custom] | Contact Material | Color | Contact Type | Number of Rows | Material - Insulation | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 12 | Solder | 6 | Copper Alloy | Green | Semi Bellows | 2 | Polyester Thermoplastic | |||
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Floating Bobbin Flush Mount | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 12 | Solder Eyelet(s) | 6 | Copper Alloy | Green | Semi Bellows | 2 | Polyester Thermoplastic | 0.116 in | 2.95 mm | ||
EDAC Inc. | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 12 | Solder | 6 | Copper Alloy | Green | Semi Bellows | 2 | Polyester Thermoplastic | 0.156 in | 3.96 mm | Card Extender |
EDAC Inc. | Non Specified - Dual Edge | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Floating Bobbin Flush Mount | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 12 | Solder | 6 | Copper Alloy | Green | Semi Bellows | 2 | Polyester Thermoplastic | 0.116 in | 2.95 mm | |
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 12 | Solder Eyelet(s) | 6 | Copper Alloy | Green | Semi Bellows | 2 | Polyester Thermoplastic | ||||
EDAC Inc. | Non Specified - Dual Edge | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 12 | Solder | 6 | Copper Alloy | Green | Semi Bellows | 2 | Polyester Thermoplastic | |||
EDAC Inc. | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 12 | Solder | 6 | Copper Alloy | Green | Semi Bellows | 2 | Polyester Thermoplastic | |||
EDAC Inc. | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 12 | Solder | 6 | Copper Alloy | Green | Semi Bellows | 2 | Polyester Thermoplastic | Card Extender | ||
EDAC Inc. | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 12 | Solder | 6 | Copper Alloy | Green | Semi Bellows | 2 | Polyester Thermoplastic | |||
EDAC Inc. | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 12 | Solder | 6 | Copper Alloy | Green | Semi Bellows | 2 | Polyester Thermoplastic | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
315-012 Series
12 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
