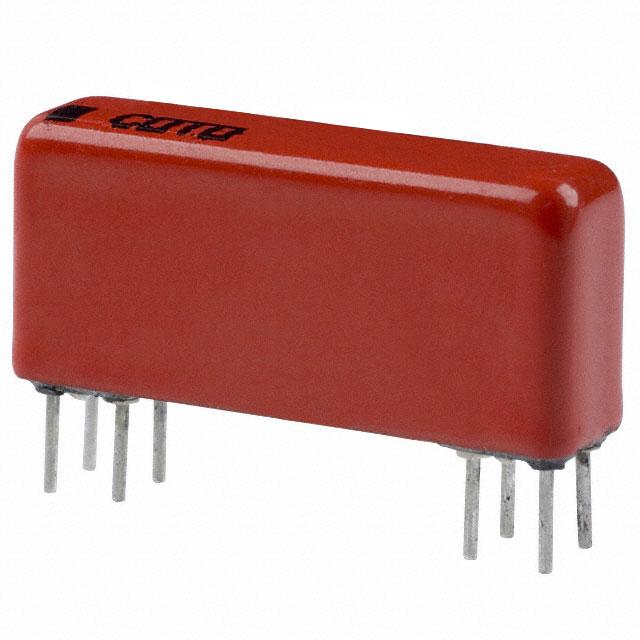

2333-12-000
ActiveCoto Technology
RELAY REED 3PST 500MA 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2333-12-000
ActiveCoto Technology
RELAY REED 3PST 500MA 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2333-12-000 |
|---|---|
| Coil Current | 12 mA |
| Coil Resistance | 1 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 0.5 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 500 µs |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 0.15 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage | 200 VDC, 200 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 19.09 | |
| 10 | $ 16.97 | |||
| 25 | $ 16.12 | |||
| 50 | $ 15.27 | |||
| 100 | $ 14.42 | |||
| 250 | $ 13.15 | |||
| 500 | $ 12.30 | |||
Description
General part information
2333 Series
RELAY REED 3PST 500MA 12V
