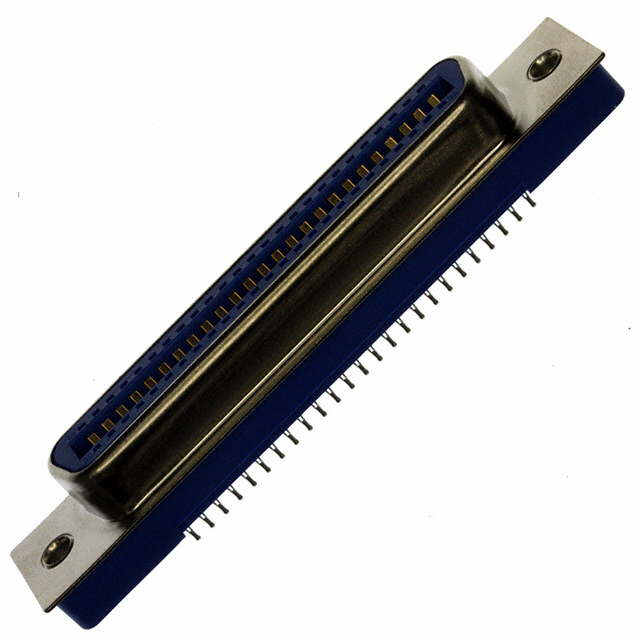

B57-050-220-202

Active

EDAC Inc.

I/O CONNECTOR, 50 CONTACTS, RECEPTACLE, CENTRONICS, PRESS FIT, B57 SERIES, PCB MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

B57-050-220-202

Active

EDAC Inc.

I/O CONNECTOR, 50 CONTACTS, RECEPTACLE, CENTRONICS, PRESS FIT, B57 SERIES, PCB MOUNT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B57-050-220-202

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	Flash
Flange Feature	Housing/Shell (4-40)
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	2
Termination	Press-Fit

B57-050 Series

Part	Number of Positions	Termination	Number of Rows	Contact Finish Thickness	Contact Finish	Connector Type	Mounting Type	Flange Feature	Connector Style
EDAC Inc. B57-050-260-502	50	Solder	2	Flash	Gold	Receptacle	Through Hole Right Angle	Housing/Shell (4-40)	Outer Shroud Contacts
EDAC Inc. B57-050-220-202	50	Press-Fit	2	Flash	Gold	Receptacle	Through Hole	Housing/Shell (4-40)	Outer Shroud Contacts

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 5.51

Description

General part information

B57-050 Series

The B57 series Centronics Wire to board Connector for use with 0.062, 0.093 or 0.125-inch board thickness. It has nickel-plated steel shell with gold-plated copper alloy contacts and a blue glass-filled thermoplastic Insulator.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
