HDF-V15-113L051

Active

MH Connectors

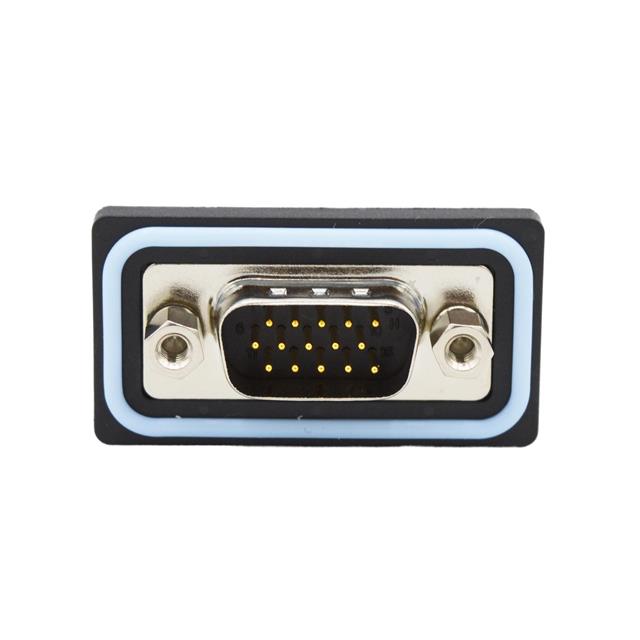

CONN D-SUB HD PLUG 15POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDF-V15-113L051

Active

MH Connectors

CONN D-SUB HD PLUG 15POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDF-V15-113L051

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

HDF-V15 Series

Part	Contact Finish	Termination	Contact Finish Thickness	Flange Feature	Current Rating (Amps)	Mounting Type	Connector Type	Dielectric Material	Color	Shell Material, Finish	Contact Material	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Contact Type	Features	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness
MH Connectors HDF-V15-113L051	Gold	Solder	Flash	Female Screwlock (4-40) Mating Side	3 A	Panel Mount Through Hole	Male Pins Plug	Polybutylene Terephthalate (PBT)	Black	Nickel Plated Steel	Brass	3	DE E	1	High Density	15	D-Sub High Density	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Signal	Board Lock Grounding Indents	UL94 V-0
MH Connectors HDF-V15-213L052	Gold	Solder		Female Screwlock (4-40) Mating Side	3 A	Panel Mount Through Hole	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Black	Nickel Plated Steel	Brass	3	DE E	1	High Density	15	D-Sub High Density	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Signal		UL94 V-0	0.76 Ám	30 Áin
MH Connectors HDF-V15-113L011	Gold	Solder	Flash	Female Screwlock (4-40) Mating Side	3 A	Panel Mount Through Hole	Male Pins Plug	Polybutylene Terephthalate (PBT)	Black	Nickel Plated Steel	Brass	3	DE E	1	High Density	15	D-Sub High Density	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Signal	Grounding Indents	UL94 V-0
MH Connectors HDF-V15-213L012	Gold	Solder		Female Screwlock (4-40) Mating Side	3 A	Panel Mount Through Hole	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Black	Nickel Plated Steel	Brass	3	DE E	1	High Density	15	D-Sub High Density	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Signal		UL94 V-0	0.76 Ám	30 Áin
MH Connectors HDF-V15-113L052	Gold	Solder		Female Screwlock (4-40) Mating Side	3 A	Panel Mount Through Hole	Male Pins Plug	Polybutylene Terephthalate (PBT)	Black	Nickel Plated Steel	Brass	3	DE E	1	High Density	15	D-Sub High Density	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Signal	Board Lock Grounding Indents	UL94 V-0	0.76 Ám	30 Áin
MH Connectors HDF-V15-213L051	Gold	Solder	Flash	Female Screwlock (4-40) Mating Side	3 A	Panel Mount Through Hole	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Black	Nickel Plated Steel	Brass	3	DE E	1	High Density	15	D-Sub High Density	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Signal		UL94 V-0
MH Connectors HDF-V15-213L011	Gold	Solder	Flash	Female Screwlock (4-40) Mating Side	3 A	Panel Mount Through Hole	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Black	Nickel Plated Steel	Brass	3	DE E	1	High Density	15	D-Sub High Density	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Signal		UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 12.29
		10	$ 9.45
		25	$ 8.54
		40	$ 8.12
		80	$ 7.55
		230	$ 6.77
		440	$ 6.74

Description

General part information

HDF-V15 Series

15 Position D-Sub, High Density Plug, Male Pins Connector
