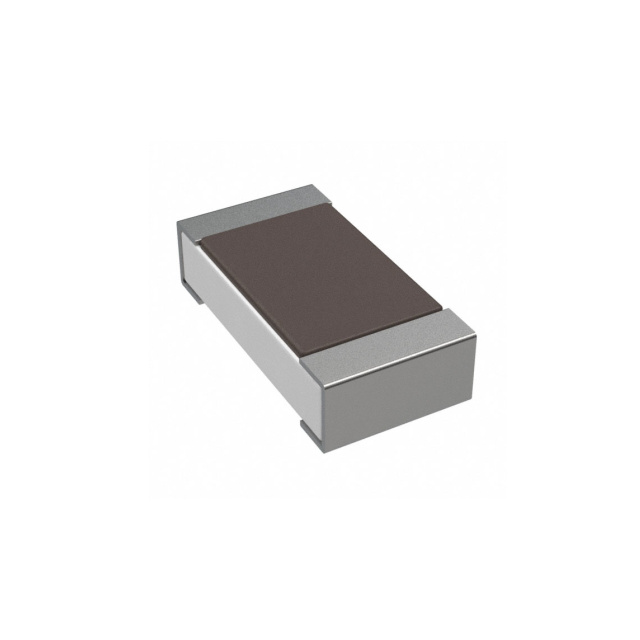

RMCP0402JT2K40

Active

Stackpole Electronics Inc

RES 2.4K OHM 5% 1/8W 0402

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RMCP0402JT2K40

Active

Stackpole Electronics Inc

RES 2.4K OHM 5% 1/8W 0402

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RMCP0402JT2K40

Composition	Thick Film
Features	Automotive AEC-Q200
Height - Seated (Max) [Max]	0.016 in
Height - Seated (Max) [Max]	0.4 mm
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1005 Metric)
Power (Watts)	0.125 W
Power (Watts)	0.125 W
Ratings	AEC-Q200
Resistance	2.4 kOhms
Size / Dimension [x]	1 mm
Size / Dimension [x]	0.039 in
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.5 mm
Supplier Device Package	0402
Temperature Coefficient	100 ppm/°C
Tolerance	5 %

RMCP0402J Series

...

Part	Features	Ratings	Resistance	Power (Watts)	Power (Watts)	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Composition	Tolerance	Supplier Device Package
Stackpole Electronics Inc RMCP0402JT120K	Automotive AEC-Q200	AEC-Q200	120 kOhms	0.125 W	0.125 W	100 ppm/°C	155 °C	-55 °C	2	0.016 in	0.4 mm	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	Thick Film	5 %	0402
Stackpole Electronics Inc RMCP0402JT56K0	Automotive AEC-Q200	AEC-Q200	56 kOhms	0.125 W	0.125 W	100 ppm/°C	155 °C	-55 °C	2	0.016 in	0.4 mm	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	Thick Film	5 %	0402
Stackpole Electronics Inc RMCP0402JT8K20	Automotive AEC-Q200	AEC-Q200	8.2 kOhms	0.125 W	0.125 W	100 ppm/°C	155 °C	-55 °C	2	0.016 in	0.4 mm	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	Thick Film	5 %	0402
Stackpole Electronics Inc RMCP0402JT2K40	Automotive AEC-Q200	AEC-Q200	2.4 kOhms	0.125 W	0.125 W	100 ppm/°C	155 °C	-55 °C	2	0.016 in	0.4 mm	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	Thick Film	5 %	0402
Stackpole Electronics Inc RMCP0402JT820K	Automotive AEC-Q200	AEC-Q200	820 kOhms	0.125 W	0.125 W	100 ppm/°C	155 °C	-55 °C	2	0.016 in	0.4 mm	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	Thick Film	5 %	0402
Stackpole Electronics Inc RMCP0402JT180R	Automotive AEC-Q200	AEC-Q200	180 Ohms	0.125 W	0.125 W	100 ppm/°C	155 °C	-55 °C	2	0.016 in	0.4 mm	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	Thick Film	5 %	0402
Stackpole Electronics Inc RMCP0402JT270K	Automotive AEC-Q200	AEC-Q200	270 kOhms	0.125 W	0.125 W	100 ppm/°C	155 °C	-55 °C	2	0.016 in	0.4 mm	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	Thick Film	5 %	0402
Stackpole Electronics Inc RMCP0402JT68K0	Automotive AEC-Q200	AEC-Q200	68 kOhms	0.125 W	0.125 W	100 ppm/°C	155 °C	-55 °C	2	0.016 in	0.4 mm	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	Thick Film	5 %	0402
Stackpole Electronics Inc RMCP0402JT220K	Automotive AEC-Q200	AEC-Q200	220 kOhms	0.125 W	0.125 W	100 ppm/°C	155 °C	-55 °C	2	0.016 in	0.4 mm	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	Thick Film	5 %	0402
Stackpole Electronics Inc RMCP0402JT150K	Automotive AEC-Q200	AEC-Q200	150000 Ohms	0.125 W	0.125 W	100 ppm/°C	155 °C	-55 °C	2	0.016 in	0.4 mm	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	Thick Film	5 %	0402

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
	Digi-Reel®	1	$ 0.10
	Tape & Reel (TR)	10000	$ 0.01

Description

General part information

RMCP0402J Series

2.4 kOhms ±5% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200 Thick Film
