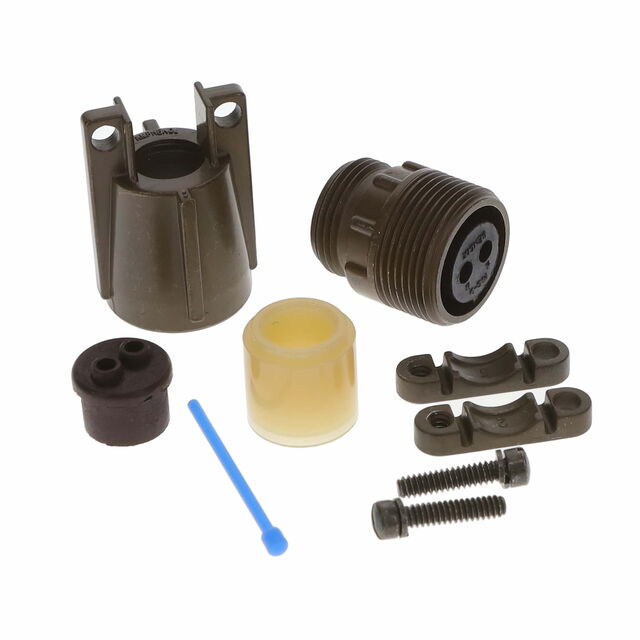

MS3101E14S-9S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3101E14S-9S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3101E14S-9S

Applications	Military, Marine
Cable Opening [diameter]	10.31 mm
Cable Opening [diameter]	0.406 in
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Strain Relief
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-9
Shielding	Unshielded

MS3101E14 Series

Part	Color	Shell Size - Insert	Contact Material	Current Rating (Amps)	Primary Material	Orientation	Shielding	Qualification	Ingress Protection	Shell Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Insert Material	Number of Positions	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Grade	Features	Mounting Type	Shell Finish	Cable Opening [custom]	Cable Opening [custom]
Amphenol Industrial Operations MS3101E14-3S
Amphenol Industrial Operations MS3101E14S-9S	Olive Drab	14S-9	Copper Alloy	13 A	Metal	N	Unshielded	MIL-DTL-5015	Environment Resistant	Aluminum Alloy	Silver	-55 °C	125 °C	Marine Military	Neoprene	2	Receptacle Female Sockets	10.31 mm	0.406 in	Military	Strain Relief	Free Hanging (In-Line)	Olive Drab Chromate over Cadmium
Amphenol Industrial Operations MS3101E14S-11P
Amphenol Industrial Operations MS3101E14S-7S	Olive Drab	14S-7	Copper Alloy	13 A	Metal	N	Unshielded	MIL-DTL-5015	Environment Resistant	Aluminum Alloy	Silver	-55 °C	125 °C	Marine Military	Neoprene		Receptacle Female Sockets	10.31 mm	0.406 in	Military	Cable Clamp	Free Hanging (In-Line)	Olive Drab Chromate over Cadmium
Amphenol Industrial Operations MS3101E14S-5P	Olive Drab	14S-5	Copper Alloy		Metal	N	Unshielded	MIL-5015	Environment Resistant	Aluminum Alloy	Silver	-55 °C	125 °C	Marine Military	Neoprene		Male Pins Receptacle				Cable Clamp	Free Hanging (In-Line)	Olive Drab Chromate over Cadmium	10.3 mm	0.406 in
Amphenol Industrial Operations MS3101E14S-6P	Olive Drab	14S-6	Copper Alloy		Metal	N	Unshielded	MIL-5015	Environment Resistant	Aluminum Alloy	Silver	-55 °C	125 °C	Marine Military	Neoprene	6	Male Pins Receptacle				Cable Clamp	Free Hanging (In-Line)	Olive Drab Chromate over Cadmium	10.3 mm	0.406 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 19.64
		10	$ 17.20
		25	$ 16.45
		50	$ 15.92
		100	$ 15.39
		250	$ 14.54
		500	$ 14.12

Description

General part information

MS3101E14 Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
