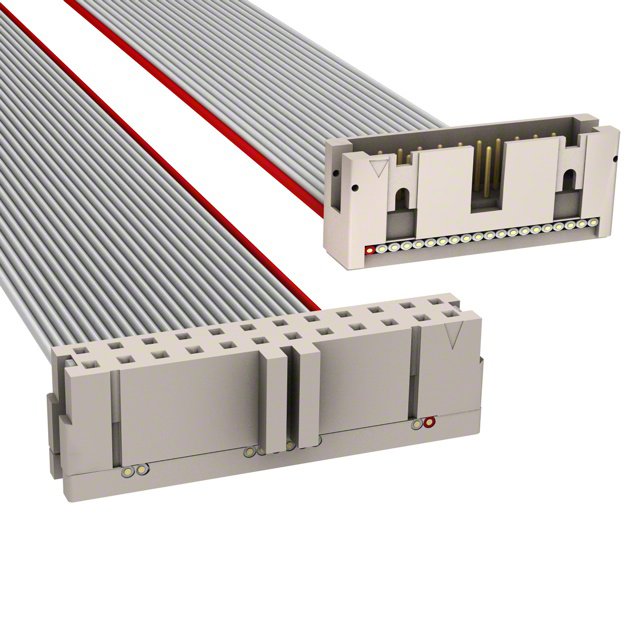

M3TKK-2036J

Active

3M (TC)

IDC CABLE - MSD20K/MC20G/MPK20K

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet Ribbon Cable Assembly Length Guide +1

M3TKK-2036J

Active

3M (TC)

IDC CABLE - MSD20K/MC20G/MPK20K

Deep-Dive with AI

Documents3365 Series Datasheet Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3TKK-2036J

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3TKK Series

Part	Length [x]	Length [x]	Contact Finish	Features	Pitch - Connector	Pitch - Connector	Number of Positions	Shielding	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Rows	Connector Type	Pitch - Cable	Pitch - Cable	Length	Length	Length	Length	Number of Positions
3M (TC) M3TKK-2618R	457.2 mm	1.5 ft	Gold	Polarizing Key	0.1 in	2.54 mm	26	Unshielded	IDC	0.76 Ám	30 Áin	Multiple Ribbon	2	Socket to Plug	0.05 "	1.27 mm
3M (TC) M3TKK-2406J			Gold	Polarizing Key	0.1 in	2.54 mm	24	Unshielded	IDC	0.76 Ám	30 Áin		2	Socket to Plug	0.05 "	1.27 mm	152.4 mm	6 "	0.5 '
3M (TC) M3TKK-2660K			Gold	Polarizing Key	0.1 in	2.54 mm	26	Unshielded	IDC	0.76 Ám	30 Áin	Multiple Twisted Pair (Flat)	2	Socket to Plug	0.05 "	1.27 mm	1.52 m			5 '
3M (TC) M3TKK-2636J	914.4 mm	3 ft	Gold	Polarizing Key	0.1 in	2.54 mm	26	Unshielded	IDC	0.76 Ám	30 Áin		2	Socket to Plug	0.05 "	1.27 mm
3M (TC) M3TKK-6036R	914.4 mm	3 ft	Gold	Polarizing Key	0.1 in	2.54 mm	60	Unshielded	IDC	0.76 Ám	30 Áin	Multiple Ribbon	2	Socket to Plug	0.05 "	1.27 mm
3M (TC) M3TKK-2036J	914.4 mm	3 ft	Gold	Polarizing Key	0.1 in	2.54 mm	20	Unshielded	IDC	0.76 Ám	30 Áin		2	Socket to Plug	0.05 "	1.27 mm
3M (TC) M3TKK-3018R	457.2 mm	1.5 ft	Gold	Polarizing Key	0.1 in	2.54 mm	30	Unshielded	IDC	0.76 Ám	30 Áin	Multiple Ribbon	2	Socket to Plug	0.05 "	1.27 mm
3M (TC) M3TKK-2418R	457.2 mm	1.5 ft	Gold	Polarizing Key	0.1 in	2.54 mm	24	Unshielded	IDC	0.76 Ám	30 Áin	Multiple Ribbon	2	Socket to Plug	0.05 "	1.27 mm
3M (TC) M3TKK-1660K			Gold	Polarizing Key	0.1 in	2.54 mm		Unshielded	IDC	0.76 Ám	30 Áin	Multiple Twisted Pair (Flat)	2	Socket to Plug	0.05 "	1.27 mm	1.52 m			5 '	16
3M (TC) M3TKK-5036R	914.4 mm	3 ft	Gold	Polarizing Key	0.1 in	2.54 mm	50	Unshielded	IDC	0.76 Ám	30 Áin	Multiple Ribbon	2	Socket to Plug	0.05 "	1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.99
		10	$ 16.16
		25	$ 14.63
		50	$ 13.59
		100	$ 12.65
		250	$ 11.54
		500	$ 10.80

Description

General part information

M3TKK Series

20 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)

Documents

Technical documentation and resources

3365 Series Datasheet

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
