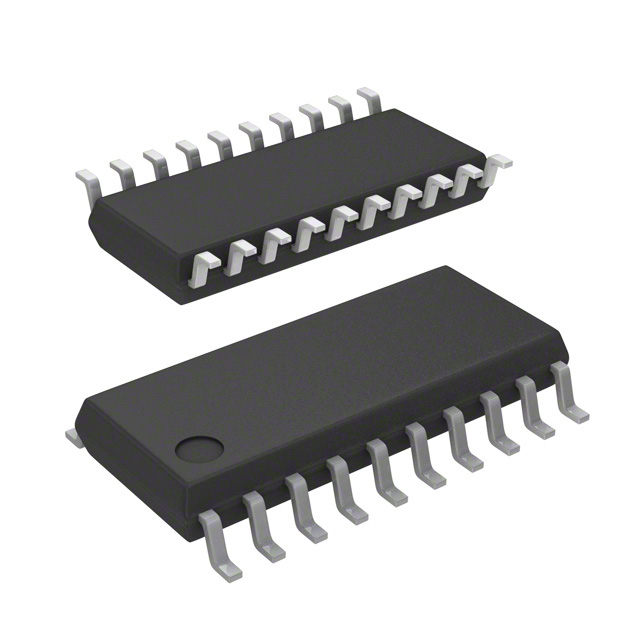

2ED020I06FIXUMA1
Infineon Technologies
IC GATE DRVR HALF-BRIDGE DSO18-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2ED020I06FIXUMA1
Infineon Technologies
IC GATE DRVR HALF-BRIDGE DSO18-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2ED020I06FIXUMA1 |
|---|---|
| Channel Type | Independent |
| Current - Peak Output (Source, Sink) [custom] | 2 A |
| Current - Peak Output (Source, Sink) [custom] | 1 A |
| Driven Configuration | Half-Bridge |
| Gate Type | N-Channel MOSFET, IGBT |
| High Side Voltage - Max (Bootstrap) [Max] | 650 V |
| Input Type | Inverting |
| Logic Voltage - VIL, VIH | 0.8 V, 2 V |
| Mounting Type | Surface Mount |
| Number of Drivers | 2 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 18-SOIC |
| Package / Case [y] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Rise / Fall Time (Typ) [custom] | 20 ns |
| Rise / Fall Time (Typ) [custom] | 20 ns |
| Supplier Device Package | PG-DSO-18-2 |
| Voltage - Supply [Max] | 18 V |
| Voltage - Supply [Min] | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.19 | |
| 10 | $ 2.77 | |||
| 25 | $ 2.40 | |||
| 100 | $ 1.98 | |||
| 250 | $ 1.78 | |||
| 500 | $ 1.66 | |||
| Digi-Reel® | 1 | $ 4.19 | ||
| 10 | $ 2.77 | |||
| 25 | $ 2.40 | |||
| 100 | $ 1.98 | |||
| 250 | $ 1.78 | |||
| 500 | $ 1.66 | |||
| Tape & Reel (TR) | 1000 | $ 1.36 | ||
Description
General part information
2ED020 Series
Half-Bridge Gate Driver IC Inverting PG-DSO-18-2
