OMI-SH-105L,300

Obsolete

TE Connectivity Potter & Brumfield Relays

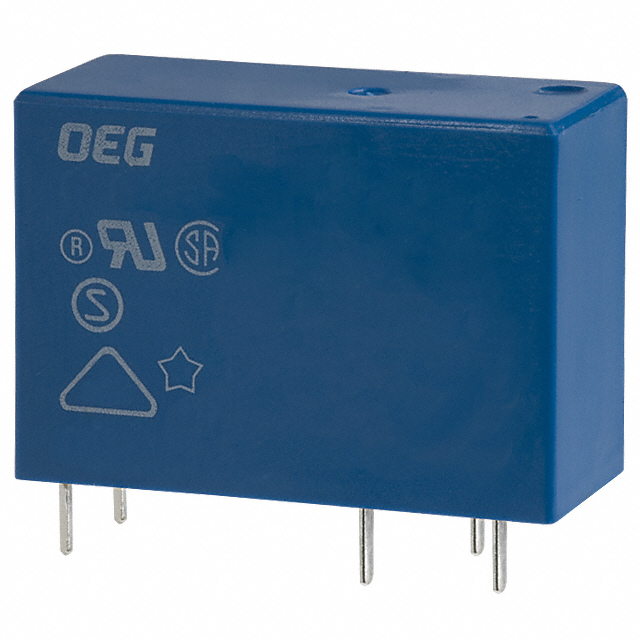

RELAY GEN PURPOSE SPDT 10A 5V

Deep-Dive with AI

Search across all available documentation for this part.

OMI-SH-105L,300

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 10A 5V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OMI-SH-105L,300

Approval Agency	CQC, CSA, VDE, UR
Coil Current	108 mA
Coil Resistance	48.5 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	10 A
Load - Max Switching	2500 VA, 300 W
Mounting Type	Through Hole
Must Operate Voltage	3.75 VDC
Must Release Voltage	0.25 VDC
Operate Time	20 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Relay Type	General Purpose
Release Time	8 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	PC Pin

OMI-SH Series

Part	Must Operate Voltage	Mounting Type	Seal Rating	Termination Style	Coil Current	Release Time	Must Release Voltage	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Contact Material	Relay Type	Load - Max Switching	Contact Rating (Current)	Coil Type	Coil Voltage	Approval Agency	Contact Form	Switching Voltage [Max]
TE Connectivity Potter & Brumfield Relays OMI-SH-212LM,594	9 VDC	Through Hole	Sealed - Fully	PC Pin	44.4 mA	8 ms	0.6 VDC	20 ms	70 °C	-30 ░C	270 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	150 W 1250 VA	5 A	Non Latching	12 VDC	CQC CSA UR VDE	DPST-NO (2 Form A)	30 VDC 250 VAC
TE Connectivity Potter & Brumfield Relays OMI-SH-105L,300	3.75 VDC	Through Hole	Sealed - Fully	PC Pin	108 mA	8 ms	0.25 VDC	20 ms	70 °C	-30 ░C	48.5 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	300 W 2500 VA	10 A	Non Latching	5 VDC	CQC CSA UR VDE	SPDT (1 Form C)	30 VDC 250 VAC
TE Connectivity Potter & Brumfield Relays OMI-SH-212L,500	9 VDC	Through Hole	Sealed - Fully	PC Pin	44.4 mA	8 ms	0.6 VDC	20 ms	70 °C	-30 ░C	270 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	150 W 1250 VA	5 A	Non Latching	12 VDC	CQC CSA UR VDE	DPDT (2 Form C)	30 VDC 250 VAC
TE Connectivity Potter & Brumfield Relays OMI-SH-112LM,094	9 VDC	Through Hole	Sealed - Fully	PC Pin	44.4 mA	8 ms	0.6 VDC	20 ms	70 °C	-30 ░C	270 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	300 W 2500 VA	10 A	Non Latching	12 VDC	CQC CSA UR VDE	SPST-NO (1 Form A)	30 VDC 250 VAC
TE Connectivity Potter & Brumfield Relays OMI-SH-112LM,000	9 VDC	Through Hole	Sealed - Fully	PC Pin	44.4 mA	8 ms	0.6 VDC	20 ms	70 °C	-30 ░C	270 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	300 W 2500 VA	10 A	Non Latching	12 VDC	CQC CSA UR VDE	SPST-NO (1 Form A)	30 VDC 250 VAC
TE Connectivity Potter & Brumfield Relays OMI-SH-112L,394	9 VDC	Through Hole	Sealed - Fully	PC Pin	44.4 mA	8 ms	0.6 VDC	20 ms	70 °C	-30 ░C	270 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	300 W 2500 VA	10 A	Non Latching	12 VDC	CQC CSA UR VDE	SPDT (1 Form C)	30 VDC 250 VAC
TE Connectivity Potter & Brumfield Relays OMI-SH-224L,500	18 VDC	Through Hole	Sealed - Fully	PC Pin	22.5 mA	8 ms	1.2 VDC	20 ms	70 °C	-30 ░C		Silver Tin Oxide (AgSnO)	General Purpose	150 W 1250 VA	5 A	Non Latching	24 VDC	CQC CSA UR VDE	DPDT (2 Form C)	30 VDC 250 VAC
TE Connectivity Potter & Brumfield Relays OMI-SH-112DM,394	8.4 VDC	Through Hole	Sealed - Fully	PC Pin	60 mA	8 ms	0.6 VDC	15 ms	60 °C	-30 ░C	200 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	300 W 2500 VA	10 A	Non Latching	12 VDC	CQC CSA UR VDE	SPST-NO (1 Form A)	30 VDC 250 VAC
TE Connectivity Potter & Brumfield Relays OMI-SH-112LM,394	9 VDC	Through Hole	Sealed - Fully	PC Pin	44.4 mA	8 ms	0.6 VDC	20 ms	70 °C	-30 ░C	270 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	300 W 2500 VA	10 A	Non Latching	12 VDC	CQC CSA UR VDE	SPST-NO (1 Form A)	30 VDC 250 VAC
TE Connectivity Potter & Brumfield Relays OMI-SH-205L,594	3.75 VDC	Through Hole	Sealed - Fully	PC Pin	106 mA	8 ms	0.25 VDC	20 ms	70 °C	-30 ░C	48.5 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	150 W 1250 VA	5 A	Non Latching	5 VDC	CQC CSA UR VDE	DPDT (2 Form C)	30 VDC 250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

OMI-SH Series

General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
