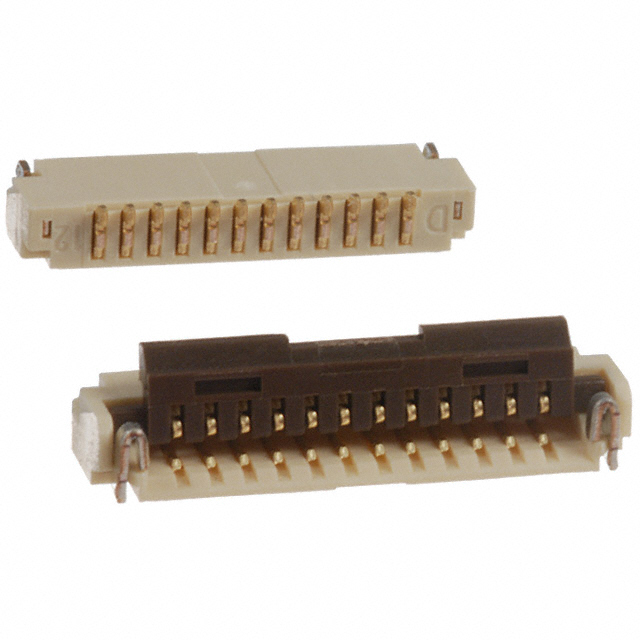

FH33-12S-0.5SH(99)

Active

Hirose Electric USA, Inc.

CONN FFC BOTTOM 12POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FH33-12S-0.5SH(99)

Active

Hirose Electric USA, Inc.

CONN FFC BOTTOM 12POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH33-12S-0.5SH(99)

Actuator Material	Nylon, Polyamide (PA)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.047 "
Height Above Board	1.2 mm
Housing Material	Polyamide (PA), Nylon
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

FH33 Series

Part	Mating Cycles	Connector/Contact Type	Mounting Type	Current Rating (Amps)	Actuator Material	Pitch [x]	Pitch [x]	Locking Feature	Termination	Cable End Type	Voltage Rating	Material Flammability Rating	Contact Finish	Contact Material	Height Above Board	Height Above Board	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	FFC, FCB Thickness	Flat Flex Type	Housing Material	Contact Finish Thickness
Hirose Electric USA, Inc. FH33-45S-0.5SH(99)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Nylon Polyamide (PA)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V	UL94 V-0	Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	45	0.3 mm	FFC FPC	Polyamide (PA) Nylon
Hirose Electric USA, Inc. FH33-30S-0.5SH		Contacts Bottom	Surface Mount Right Angle	0.5 A	Nylon Polyamide (PA)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V	UL94 V-0	Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	30	0.3 mm	FFC FPC	Polyamide (PA) Nylon	Flash
Hirose Electric USA, Inc. FH33J-40S-0.5SH(10)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Polyphenylene Sulfide (PPS)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V		Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	40	0.3 mm	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Flash
Hirose Electric USA, Inc. FH33-30S-0.5SH(99)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Nylon Polyamide (PA)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V	UL94 V-0	Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	30	0.3 mm	FFC FPC	Polyamide (PA) Nylon
Hirose Electric USA, Inc. FH33J-10S-0.5SH(99)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Polyphenylene Sulfide (PPS)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V		Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	10	0.3 mm	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric USA, Inc. FH33-45S-0.5SH(10)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Nylon Polyamide (PA)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V	UL94 V-0	Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	45	0.3 mm	FFC FPC	Polyamide (PA) Nylon	Flash
Hirose Electric USA, Inc. FH33-12S-0.5SH(99)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Nylon Polyamide (PA)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V	UL94 V-0	Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	12	0.3 mm	FFC FPC	Polyamide (PA) Nylon
Hirose Electric USA, Inc. FH33-14S-0.5SH(10)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Nylon Polyamide (PA)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V	UL94 V-0	Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	14	0.3 mm	FFC FPC	Polyamide (PA) Nylon	Flash
Hirose Electric USA, Inc. FH33J-4S-0.5SH(10)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Polyphenylene Sulfide (PPS)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V		Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	4	0.3 mm	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Flash
Hirose Electric USA, Inc. FH33J-18S-0.5SH(99)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Polyphenylene Sulfide (PPS)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V		Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	18	0.3 mm	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 1.44

Description

General part information

FH33 Series

12 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
