STL-6-350-3-01

Active

Essentra Access Solutions

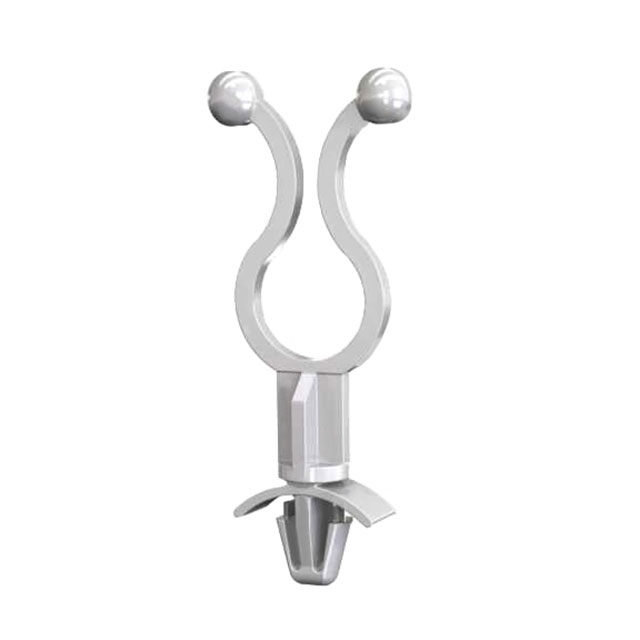

CBL CLIP TWIST LOCK NAT ARROW

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP TWIST LOCK NAT ARROW

Technical Specifications

Parameters and characteristics for this part

Specification	STL-6-350-3-01

Color	Natural
Height	27.89 mm
Height [z]	1.098 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size [Max]	10.21 mm
Opening Size [Max]	0.402 in
Opening Size [Min]	7.59 mm
Opening Size [Min]	0.299 in
Panel Hole Size	5.99 mm
Panel Hole Size	0.236 in
Panel Thickness [Max]	0.078 in
Panel Thickness [Max]	1.98 mm
Panel Thickness [Min]	0.031 "
Panel Thickness [Min]	0.79 mm
Type	Clip, Twist Lock

Part	Mounting Type	Material	Type	Opening Size [Min]	Opening Size [Max]	Opening Size [Max]	Opening Size [Min]	Height	Height [z]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Hole Size	Panel Hole Size	Color	Material Flammability Rating
Essentra Access Solutions STL-6-350-3-01	Arrowhead Winged	Polyamide (PA66) Nylon 6/6	Clip Twist Lock	7.59 mm	10.21 mm	0.402 in	0.299 in	27.89 mm	1.098 in	0.078 in	0.031 "	0.79 mm	1.98 mm	5.99 mm	0.236 in	Natural	UL94 V-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.18

General part information

Cable Clip, Twist Lock Natural Arrowhead, Winged 0.299" ~ 0.402" (7.59mm ~ 10.21mm)

Technical documentation and resources

No documents available
