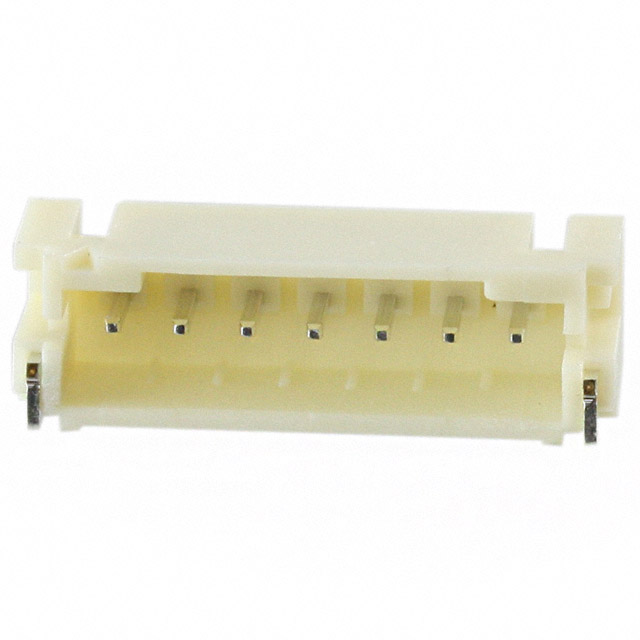

SWR201-NRTN-S07-HM-BG

Active

Sullins Connector Solutions

CONN HEADER SMD R/A 7POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

SWR201-NRTN-S07-HM-BG

Active

Sullins Connector Solutions

CONN HEADER SMD R/A 7POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWR201-NRTN-S07-HM-BG

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Beige
Insulation Height [custom]	5.51 mm
Insulation Height [custom]	0.217 in
Insulation Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VDC

SWR201 Series

Part	Contact Finish - Post	Connector Type	Current Rating (Amps)	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Number of Positions Loaded	Voltage Rating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Shape	Contact Material	Insulation Height	Insulation Height	Termination	Insulation Color	Shrouding	Mounting Type	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish - Mating	Features	Insulation Height [custom]	Insulation Height [custom]	Number of Positions
Sullins Connector Solutions SWR201-NREN-S02-SA-WH	Tin	Header	2 A	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Male Pin	1	0.134 in	3.4 mm	UL94 V-0	All	100 V	Board to Cable/Wire	-25 °C	85 °C	2	Square	Brass	0.24 in	6.1 mm	Kinked Pin Solder	White	Shrouded - 4 Wall	Through Hole	Detent Lock
Sullins Connector Solutions SWR201-NREN-S14-SA-WH	Tin	Header	2 A	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Male Pin	1	0.134 in	3.4 mm	UL94 V-0	All	100 V	Board to Cable/Wire	-25 °C	85 °C	14	Square	Brass	0.24 in	6.1 mm	Kinked Pin Solder	White	Shrouded - 4 Wall	Through Hole	Detent Lock
Sullins Connector Solutions SWR201-NRTN-S10-RL-WH	Tin	Header	1 A	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Male Pin	1	0.134 in	3.4 mm	UL94 V-0	All	125 VDC	Board to Cable/Wire	-25 °C	85 °C	10	Square	Brass	0.189 in	4.8 mm	Kinked Pin Solder	White	Shrouded - 4 Wall	Through Hole Right Angle	Detent Lock
Sullins Connector Solutions SWR201-NRPN-S02-HM-BG	Gold	Header	2 A	Nylon 6T Polyamide (PA6T)	0.079 in	2 mm	Male Pin	1			UL94 V-0	All	100 V	Board to Cable/Wire	-25 °C	85 °C	2	Square	Brass			Solder	Beige	Shrouded - 4 Wall	Surface Mount Right Angle	Detent Lock	Flash	Flash	Gold	Solder Retention	5.51 mm	0.217 in
Sullins Connector Solutions SWR201-NRTN-S07-HM-BG	Tin	Header	1 A	Polyamide (PA46) Nylon 4/6	0.079 in	2 mm	Male Pin	1			UL94 V-0	All	125 VDC	Board to Cable/Wire	-25 °C	85 °C	7	Square	Brass			Solder	Beige	Shrouded - 4 Wall	Surface Mount Right Angle	Detent Lock				Solder Retention	5.51 mm	0.217 in
Sullins Connector Solutions SWR201-NREN-S15-SA-WH	Tin	Header	2 A	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Male Pin	1	0.134 in	3.4 mm	UL94 V-0	All	100 V	Board to Cable/Wire	-25 °C	85 °C	15	Square	Brass	0.24 in	6.1 mm	Kinked Pin Solder	White	Shrouded - 4 Wall	Through Hole	Detent Lock
Sullins Connector Solutions SWR201-NRTN-S04-SA-WH	Tin	Header	1 A	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Male Pin	1	0.134 in	3.4 mm	UL94 V-0	All	125 VDC	Board to Cable/Wire	-25 °C	85 °C	4	Square	Brass	0.236 in	6 mm	Kinked Pin Solder	White	Shrouded - 4 Wall	Through Hole	Detent Lock
Sullins Connector Solutions SWR201-NRTN-S03-SA-WH	Tin	Header	1 A	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Male Pin	1	0.134 in	3.4 mm	UL94 V-0	All	125 VDC	Board to Cable/Wire	-25 °C	85 °C		Square	Brass	0.236 in	6 mm	Kinked Pin Solder	White	Shrouded - 4 Wall	Through Hole	Detent Lock
Sullins Connector Solutions SWR201-NRTN-S04-SM-BG	Tin	Header	1 A	Polyamide (PA46) Nylon 4/6	0.079 in	2 mm	Male Pin	1			UL94 V-0	All	125 VDC	Board to Cable/Wire	-25 °C	85 °C	4	Square	Brass	0.26 in	6.6 mm	Solder	Beige	Shrouded - 4 Wall	Surface Mount	Detent Lock				Solder Retention
Sullins Connector Solutions SWR201-NREN-S16-RL-WH	Tin	Header	2 A	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Male Pin	1	0.134 in	3.4 mm	UL94 V-0	All	100 V	Board to Cable/Wire	-25 °C	85 °C		Square	Brass	0.197 in	5 mm	Kinked Pin Solder	White	Shrouded - 4 Wall	Through Hole Right Angle	Detent Lock							16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 0.66

Description

General part information

SWR201 Series

Connector Header Surface Mount, Right Angle 7 position 0.079" (2.00mm)
