268-5401-00-1102JH
Obsolete3M (TC)
3M OEM LCC SOCKETS, 268-5401-00-1102JH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
268-5401-00-1102JH
Obsolete3M (TC)
3M OEM LCC SOCKETS, 268-5401-00-1102JH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 268-5401-00-1102JH |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 30 µin |
| Contact Finish Thickness - Post | 0.76 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Current Rating (Amps) | 1 A |
| Features | Closed Frame |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) [custom] | 4 |
| Number of Positions or Pins (Grid) [custom] | 68 |
| Number of Positions or Pins (Grid) [custom] | 17 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 2.54 mm |
| Termination Post Length | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
268 Series

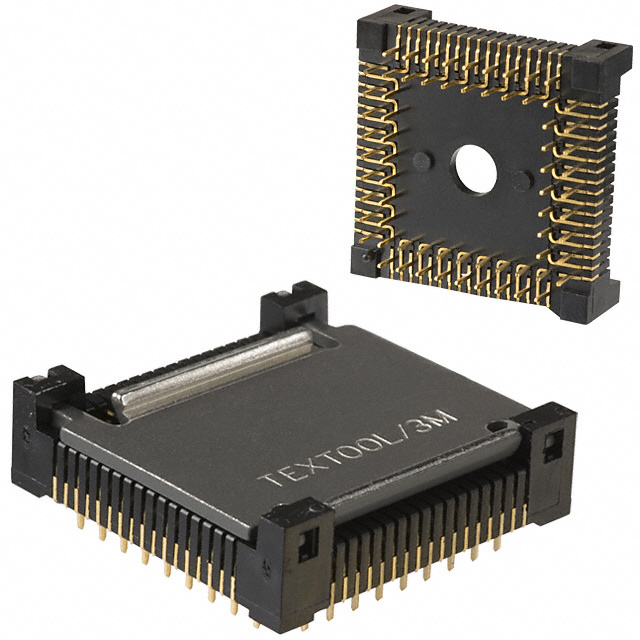

68 (4 x 17) Pos CLCC Socket Gold Through Hole
