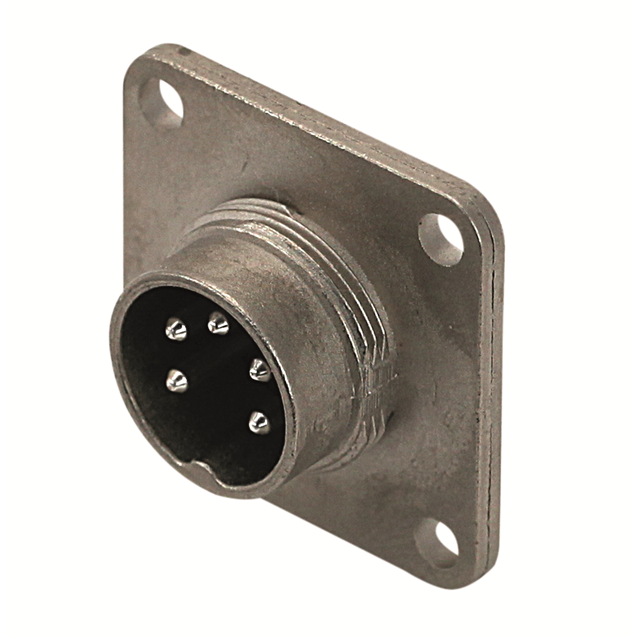

C091 11S012 000 2

Active

Amphenol Sine Systems Corp

FLANGE MOUNT MALE METAL RECEPTAC

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

FLANGE MOUNT MALE METAL RECEPTAC

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11S012 000 2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-12
Shielding	Shielded
Type	For Male Pins

Part	Number of Positions	Insert Material	Ingress Protection	Contact Shape	Note	Orientation	Mounting Feature	Shielding	Material Flammability Rating	Contact Type	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Type	Shell Size - Insert	Connector Type	Shell Material	Housing Color
Amphenol Sine Systems Corp C091 11S012 000 2	12	Thermoplastic	IP65 IP67 IP69K	Circular	Contacts Not Included	Keyed	Flange	Shielded	UL94 V-0	Crimp	1 mm	100 °C	-40 °C	Nickel	For Male Pins	M16-12	Receptacle Housing	Zinc Die Cast	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle Housing Panel Mount
