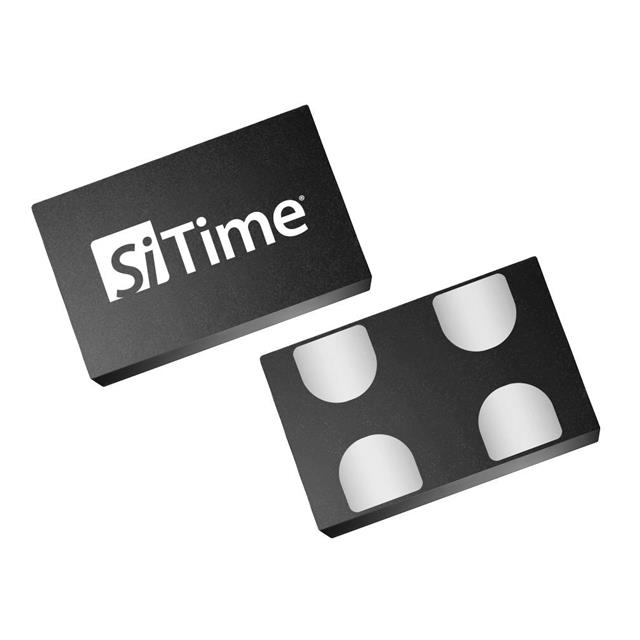

SIT9025AE-11H18ED25.000000

Active

SiTime

MEMS OSC SSXO 25.000000 MHZ LVCM

Search across all available documentation for this part.

Active

SiTime

MEMS OSC SSXO 25.000000 MHZ LVCM

Technical Specifications

Parameters and characteristics for this part

Specification	SIT9025AE-11H18ED25.000000

Base Resonator	MEMS
Current - Supply (Disable) (Max) [Max]	6 mA
Current - Supply (Max) [Max]	8 mA
Frequency	25 MHz
Frequency Stability	20 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output	LVCMOS
Package / Case	4-SMD, No Lead
Ratings	AEC-Q100
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Spread Spectrum Bandwidth	0.515 %
Type	XO (Standard)
Voltage - Supply	1.8 V

Part	Output	Base Resonator	Current - Supply (Max) [Max]	Voltage - Supply	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency Stability	Frequency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Mounting Type	Supplier Device Package	Spread Spectrum Bandwidth	Current - Supply (Disable) (Max) [Max]	Function
SiTime SIT9025AA-13-33DL27.000000	LVCMOS	MEMS	8 mA	3.3 V	XO (Standard)	0.8 mm	0.031 "	0.098 "	2 mm	2.5 mm	0.079 in	50 ppm	27 MHz	4-SMD No Lead	125 °C	-40 °C	AEC-Q100	Surface Mount
SiTime SIT9025AA-22H33NA27.120000	LVCMOS	MEMS	9.5 mA	3.3 V	XO (Standard)	0.8 mm	0.031 "	0.126 in	2.5 mm	3.2 mm	0.098 in	25 ppm	27.12 MHz	4-SMD No Lead	125 °C	-40 °C	AEC-Q100	Surface Mount	4-PQFN (3.2x2.5)	0.125 %
SiTime SIT9025AE-11H18ED25.000000	LVCMOS	MEMS	8 mA	1.8 V	XO (Standard)	0.8 mm	0.031 "	0.098 "	2 mm	2.5 mm	0.079 in	20 ppm	25 MHz	4-SMD No Lead	105 ░C	-40 °C	AEC-Q100	Surface Mount		0.515 %	6 mA	Enable/Disable
SiTime SIT9025AE-22-33E-90.000000	LVCMOS	MEMS	9.5 mA	3.3 V	XO (Standard)	0.8 mm	0.031 "	0.126 in	2.5 mm	3.2 mm	0.098 in	25 ppm	90 MHz	4-SMD No Lead	105 ░C	-40 °C	AEC-Q100	Surface Mount			6.5 mA	Enable/Disable
SiTime SIT9025AE-73-33E-150.000000	LVCMOS	MEMS	9.5 mA	3.3 V	XO (Standard)	0.8 mm	0.031 "	0.079 in	1.6 mm	2 mm	0.063 in	50 ppm	150 MHz	4-SMD No Lead	105 ░C	-40 °C	AEC-Q100	Surface Mount			6.5 mA	Enable/Disable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 3.05

General part information

25 MHz XO (Standard) LVCMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
