174-025-212-141

Obsolete

MH Connectors

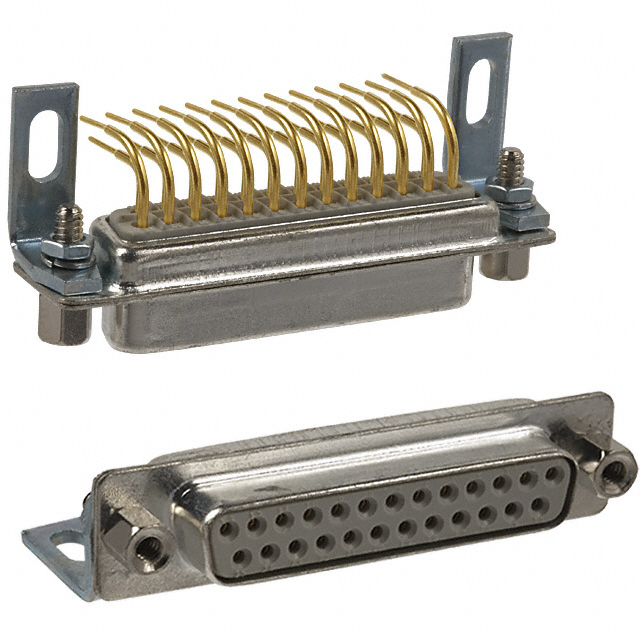

CONN D-SUB RCPT 25POS R/A SLDR

Search across all available documentation for this part.

Obsolete

MH Connectors

CONN D-SUB RCPT 25POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	174-025-212-141

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Beige
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Rows	2
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

Part	Contact Finish Thickness	Contact Type	Connector Type	Number of Rows	Dielectric Material	Features	Contact Material	Mounting Type	Material Flammability Rating	Flange Feature	Termination	Backset Spacing	Backset Spacing	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Connector Style	Contact Finish	Current Rating (Amps)	Shell Material, Finish
MH Connectors 174-025-112R141	Flash	Signal	Male Pins Plug	2	Polybutylene Terephthalate (PBT) Polyester	Grounding Indents Mounting Brackets	Brass	Panel Mount Right Angle Through Hole	UL94 V-0	Female Screwlock (4-40) Mating Side	Solder	9.4 mm	0.37 in	B DB	3	Beige	D-Sub	Gold	5 A
MH Connectors 174-025-212-141	Flash	Signal	Receptacle Female Sockets	2	Polybutylene Terephthalate (PBT)	Mounting Brackets		Panel Mount Right Angle Through Hole	UL94 V-0	Female Screwlock (4-40) Mating Side	Solder	9.4 mm	0.37 in	B DB	3	Beige	D-Sub	Gold	5 A
MH Connectors 174-025-211-141	Flash	Signal	Receptacle Female Sockets	2	Polybutylene Terephthalate (PBT)	Mounting Brackets		Panel Mount Right Angle Through Hole	UL94 V-0	Female Screwlock (4-40) Mating Side	Solder	9.4 mm	0.37 in	B DB	3	Beige	D-Sub	Gold	5 A	Steel Yellow Chromate Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

25 Position D-Sub Receptacle, Female Sockets Connector
