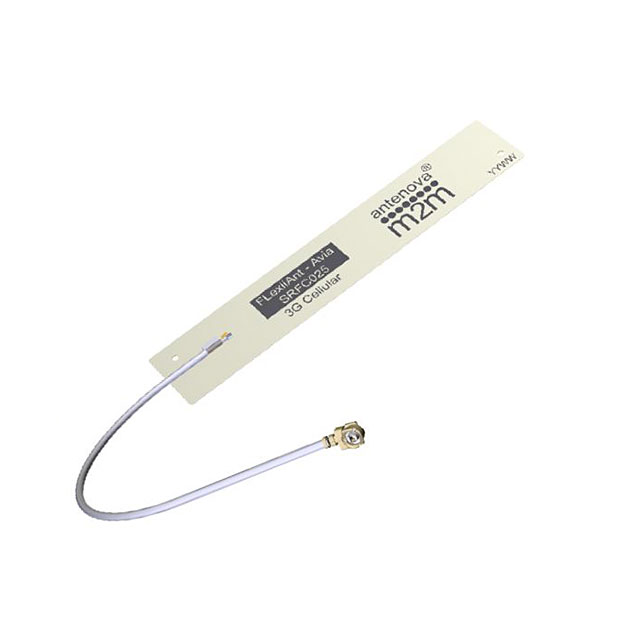

SRFC025-150
ActiveAntenova
ANTENNA FPC -3.31DBI GAIN 960MHZ/2170MHZ BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRFC025-150 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | GSM, WCDMA |
| Frequency (Center/Band) | 1.9 GHz, 892 MHz |
| Frequency Range [Max] | 960 MHz, 2.17 GHz |
| Frequency Range [Min] | 1.71 GHz, 824 MHz |
| Gain | 5.4 dBi |
| Height (Max) | 0.15 mm |
| Height (Max) [Max] | 0.006 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Return Loss | -17 dB |
| RF Family/Standard | Cellular |
| Termination | IPEX MHF1, U.FL (UMCC) |
| VSWR | 2.2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.82 | |
| 10 | $ 2.40 | |||
| 25 | $ 2.24 | |||
| 100 | $ 2.08 | |||
Description
General part information
SRFC025 Series
RF ANTENNA GSM, WCDMA Flat Patch U.FL (UMCC), IPEX MHF1 Adhesive
