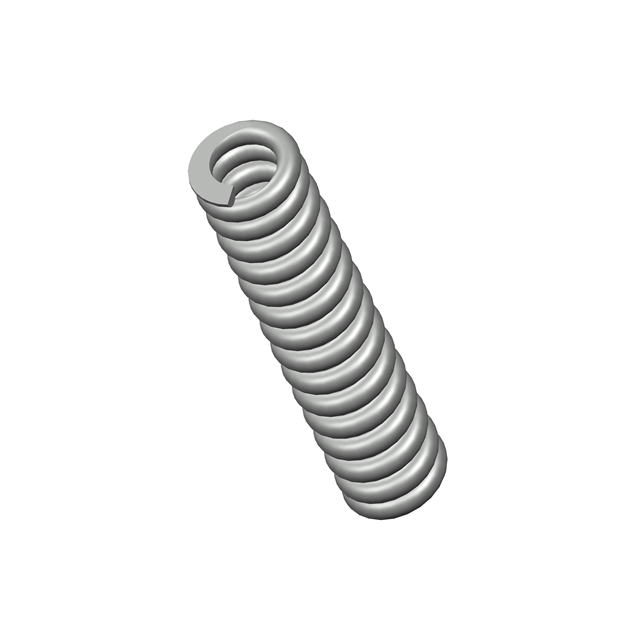

Q-95CS

Active

Century Spring Corp

COMP O= .140,L= .63,W= .030

Search across all available documentation for this part.

Active

Century Spring Corp

COMP O= .140,L= .63,W= .030

Technical Specifications

Parameters and characteristics for this part

Part	Finish	Free Length	Free Length	Material	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Wire Diameter	Wire Diameter	Rate	End Style	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wire Diameter	Diameter - Inside	Wire Diameter [diameter]	Wire Diameter [diameter]
Century Spring Corp QQ-47CS	None	1.5 in	38.1 mm	Stainless Steel	4.88 mm	0.192 in	0.021 in	0.53 mm	1.3 lbs/in	Closed
Century Spring Corp Q-54CS	None	1.44 in	36.58 mm	Stainless Steel	5.13 mm	0.202 in	0.047 in	1.19 mm	28 lbs/in	Closed Ground	0.296 in	7.52 mm
Century Spring Corp Q-91CS	None	1.25 in	31.75 mm	Spring Steel	3.76 mm	0.148 in	0.043 "	1.09 mm	50 lbs/in	Closed Ground
Century Spring Corp Q-39CS	None	0.63 in	16 mm	Music Wire	9.09 mm	0.358 in		0.61 mm		Closed	0.406 in	10.31 mm	0.024 "
Century Spring Corp Q-97CS	None	0.53 in	13.46 mm	Stainless Steel		0.283 "	0.03 in	0.76 mm	6.7 lbs/in	Closed	0.343 in	8.71 mm		7.19 mm
Century Spring Corp Q-95CS	None	0.63 in	16 mm	Music Wire	2.03 mm	0.08 "	0.03 in	0.76 mm	65 lbs/in	Closed Ground	0.14 in	3.56 mm
Century Spring Corp Q-55CS	None	1 in	25.4 mm	Stainless Steel	4.22 mm	0.166 in	0.011 in	0.28 mm	0.17 lbs/in	Closed	0.188 "	4.78 mm
Century Spring Corp Q-64CS	None	0.69 in	17.53 mm	Stainless Steel	15.77 mm	0.621 in			5 lbs/in	Closed	0.703 "	17.86 mm			0.041 in	1.04 mm
Century Spring Corp Q-81CS	None	0.5 in	12.7 mm	Music Wire	2.67 mm	0.105 "			0.33 lbs/in	Closed	0.125 in	3.18 mm
Century Spring Corp Q-69CS	None	1 in	25.4 mm	Music Wire	4.06 mm	0.16 in			0.43 lbs/in	Closed Ground	0.188 "	4.78 mm			0.014 in	0.36 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

COMP O= .140,L= .63,W= .030
