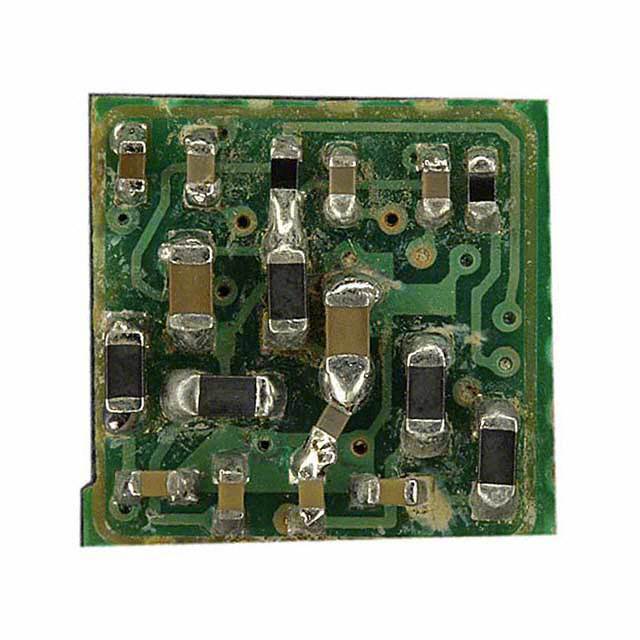

SSM2306-MINI-EVALZ

Obsolete

Analog Devices

BOARD EVAL FOR SSM2306-MINI

Search across all available documentation for this part.

Obsolete

Analog Devices

BOARD EVAL FOR SSM2306-MINI

Technical Specifications

Parameters and characteristics for this part

Specification	SSM2306-MINI-EVALZ

Board Type	Fully Populated
Max Output Power x Channels @ Load	2.4 W
Max Output Power x Channels @ Load [x]	2
Output Type	2-Channel (Stereo)
Supplied Contents	Board(s)
Utilized IC / Part	SSM2306
Voltage - Supply [Max]	5 V
Voltage - Supply [Min]	2.5 V

Part	Supplied Contents	Voltage - Supply [Max]	Voltage - Supply [Min]	Board Type	Output Type	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [x]	Utilized IC / Part
Analog Devices SSM2306-MINI-EVALZ	Board(s)	5 V	2.5 V	Fully Populated	2-Channel (Stereo)	2.4 W	2	SSM2306
Analog Devices SSM2306-EVALZ	Board(s)	5 V	2.5 V	Fully Populated	2-Channel (Stereo)	2.4 W	2	SSM2306

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SSM2306 - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board
