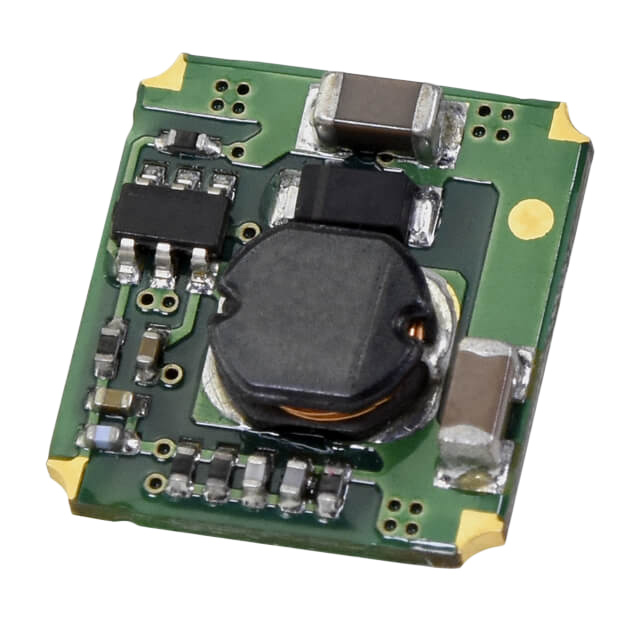

VXO78012-500-M-TR

CUI Inc.

DC DC CONVERTER 12V 6W

Search across all available documentation for this part.

CUI Inc.

DC DC CONVERTER 12V 6W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Number of Outputs	Approval Agency	Package / Case	Voltage - Input (Max) [Max]	Mounting Type	Type	Voltage - Output 1	Standard Number	Efficiency	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max)	Features	Voltage - Input (Max)
CUI Inc. VXO78012-500-M-TR	6 W	500 mA	85 °C	-40 °C	15 V	1	EN	4-SMD Module	36 V	Surface Mount	Non-Isolated PoL Module	12 V	55024 55032	94 %	ITE (Commercial)	13.5 mm	0.53 in	12.5 mm	0.49 in	3.5 mm	0.14 "
CUI Inc. VXO78012-1000	12 W		85 °C	-40 °C	8 V 16 V	1	CB Scheme EN IEC UL	3-SIP Module	20 V 36 V	Through Hole	Linear Regulator Replacement	-12 V 12 V	55024 55032 Class A 60950-1	96 %	ITE (Commercial)	11.5 mm	0.45 in	7.5 mm	0.3 "	17.5 mm	0.69 "	1 A 300 mA	SCP
CUI Inc. VXO78012-500	6 W		85 °C	-40 °C	8 V 15 V	1	CB Scheme EN IEC UL	3-SIP Module		Through Hole	Linear Regulator Replacement	-12 V 12 V	55024 55032 Class A 60950-1	94 %	ITE (Commercial)	10 mm	0.39 "	7.2 mm	0.28 in	11 mm	0.43 "	150 mA 500 mA	SCP	24 V 36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.74
	Digi-Reel®	1	$ 2.74
	Tape & Reel (TR)	750	$ 2.14

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 12V 500mA 15V - 36V Input

Technical documentation and resources

No documents available
