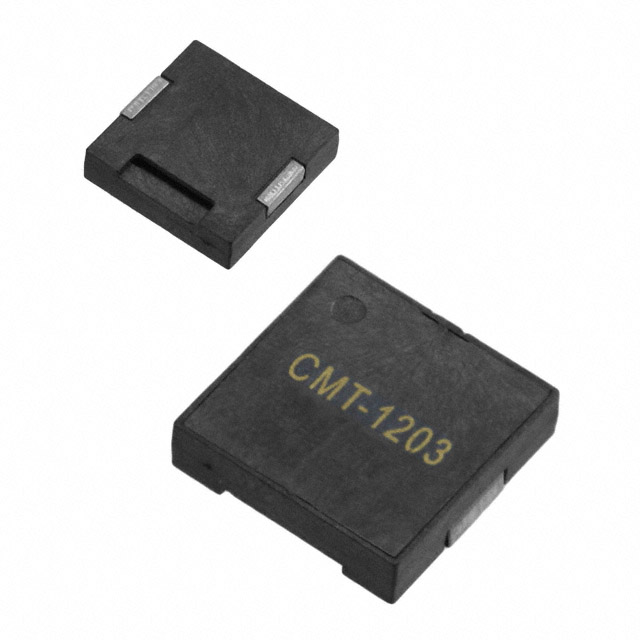

CMT-1203-SMT-TR
ActiveCUI Devices
BUZZER PIEZO 5V 12MM X 12MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMT-1203-SMT-TR
ActiveCUI Devices
BUZZER PIEZO 5V 12MM X 12MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMT-1203-SMT-TR |
|---|---|
| Current - Supply | 5 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 4 kHz |
| Height - Seated (Max) [Max] [z] | 0.13 " |
| Height - Seated (Max) [Max] [z] | 3.3 mm |
| Input Type | Peak-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Side |
| Size / Dimension [x] | 0.472 in |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [y] | 0.472 " |
| Size / Dimension [y] | 12 mm |
| Sound Pressure Level (SPL) | 81 dB |
| Technology | Piezo |
| Termination | Solder Pads |
| Voltage - Rated | 5 V |
| Voltage Range [Max] | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.59 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.19 | |||
| 50 | $ 1.12 | |||
| 100 | $ 1.06 | |||
| 250 | $ 0.97 | |||
| 500 | $ 0.93 | |||
| Digi-Reel® | 1 | $ 1.59 | ||
| 10 | $ 1.29 | |||
| 25 | $ 1.19 | |||
| 50 | $ 1.12 | |||
| 100 | $ 1.06 | |||
| 250 | $ 0.97 | |||
| 500 | $ 0.93 | |||
| Tape & Reel (TR) | 1000 | $ 1.01 | ||
| 2000 | $ 0.96 | |||
Description
General part information
CMT-1203 Series
Buzzers Transducer, Externally Driven Piezo 5 V 5mA 4kHz 81dB @ 5V, 10cm Surface Mount Solder Pads
