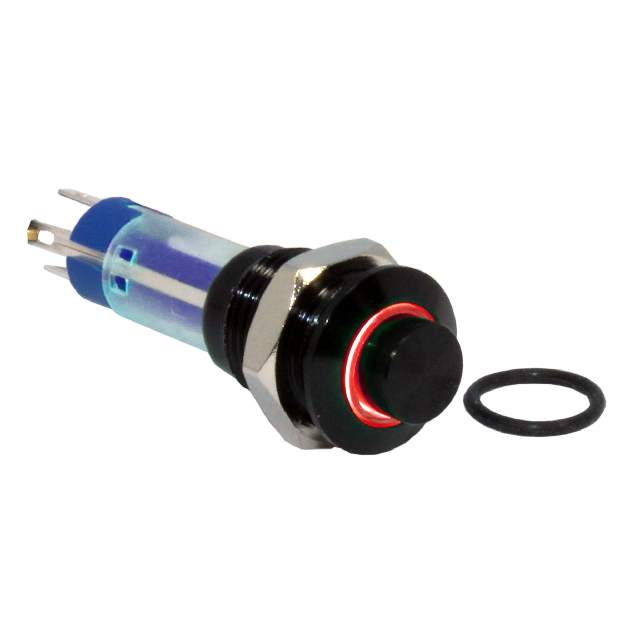

GHLEBBRGN

Active

CIT Relay and Switch

SWITCH PB SPST 2A 48V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPST 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	GHLEBBRGN

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	Green/Red, LED
Ingress Protection	IP40
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	10 mm
Switch Function	On-Off
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V

Part	Mechanical Life	Switch Function	Mounting Type	Circuit	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Ingress Protection	Current Rating (Amps)	Type	Color - Actuator/Cap	Actuator Type	Illumination Type, Color	Termination Style
CIT Relay and Switch GHLEBBRGN	100000 Cycles	On-Off	Panel Mount Front	SPST	50000 Cycles	55 °C	-25 °C	No Marking	48 V	10 mm	IP40	2 A	Anti-Vandal Illuminated	Black	Button Round	Green/Red LED	Solder Lug
CIT Relay and Switch GHLEBBBN	100000 Cycles	On-Off	Panel Mount Front	SPST	50000 Cycles	55 °C	-25 °C	No Marking	48 V	10 mm	IP40	2 A	Anti-Vandal Illuminated	Black	Button Round	Blue LED	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 13.38

General part information

Pushbutton Switch SPST Anti-Vandal, Illuminated Panel Mount, Front
