TS2P4F20

Active

Switchcraft Inc.

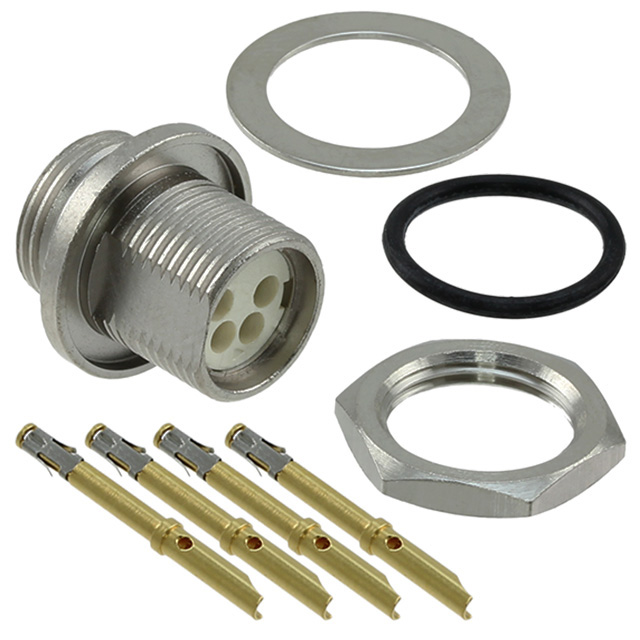

CONN RCPT FMALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2P4F20

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

Part	Ingress Protection	Contact Finish - Mating	Insert Material	Shell Finish	Contact Material	Shell Material	Voltage Rating	Mounting Feature	Termination	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Color	Shielding	Number of Positions	Primary Material	Applications	Mounting Type
Switchcraft Inc. TS2P4F20	IP66 IP67 IP68	Gold	Liquid Crystal Polymer (LCP)	Electroless Nickel	Copper Alloy	Copper Alloy	125 VAC	Bulkhead - Rear Side Nut	Crimp Solder Cup	Receptacle Female Sockets	135 °C	-40 °C	Keyed	Silver	Shielded	4	Metal	Agriculture Audio General Medical Testing Equipment & Measurement
Switchcraft Inc. TS2P4F20-BP	IP66 IP67 IP68	Gold	Liquid Crystal Polymer (LCP)	Electroless Nickel	Copper Alloy	Copper Alloy	125 VAC	Bulkhead - Front Side Nut	Solder	Receptacle Female Sockets	135 °C	-40 °C	Keyed	Silver	Shielded	4	Metal	Agriculture Audio General Medical Testing Equipment & Measurement	Panel Mount Through Hole
Switchcraft Inc. TS2P4F20-BPE	IP66 IP67 IP68	Gold	Liquid Crystal Polymer (LCP)	Electroless Nickel	Copper Alloy	Copper Alloy	125 VAC	Bulkhead - Front Side Nut	Solder	Receptacle Female Sockets	135 °C	-40 °C	Keyed	Silver	Shielded	4	Metal	Agriculture Audio General Medical Testing Equipment & Measurement	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
