51-282.025

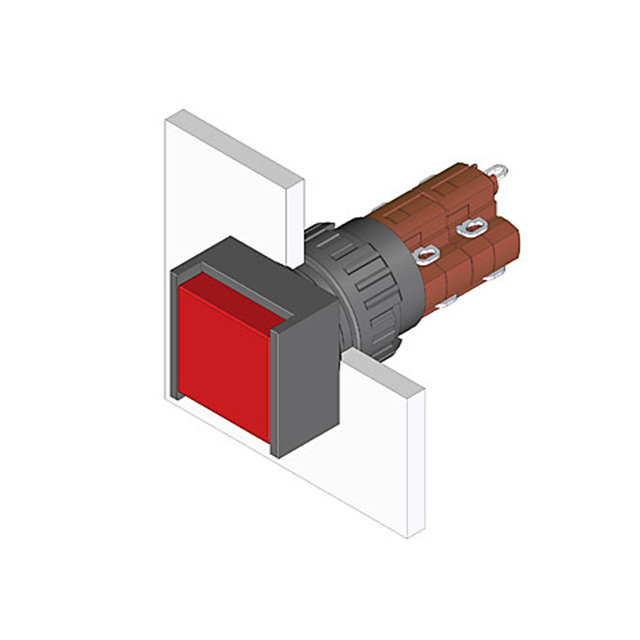

ActivePUSHBUTTON SWITCH, 51 SERIES, 16.2 MM, DPST-NO, DPST-NC, MAINTAINED, SQUARE
Deep-Dive with AI
Search across all available documentation for this part.
51-282.025
ActivePUSHBUTTON SWITCH, 51 SERIES, 16.2 MM, DPST-NO, DPST-NC, MAINTAINED, SQUARE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 51-282.025 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Square, Button (Not Included) |
| Circuit | 4PST-2NO/2NC |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-Off, Off-On |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
51-282 Series
The 51 series Illuminated Pushbutton switch with hose-proof front (IP65) can be supplied with snap-action or low-level switching elements. The equipment (switches) for raised mounting are protected against accidental operation by the extended sides of the bezel. Flush mounting equipment excels with best available agronomy and low down height. To supplement the range of illuminated pushbuttons, it can offer a hose-proof safety keylock switch with various lock numbers.
