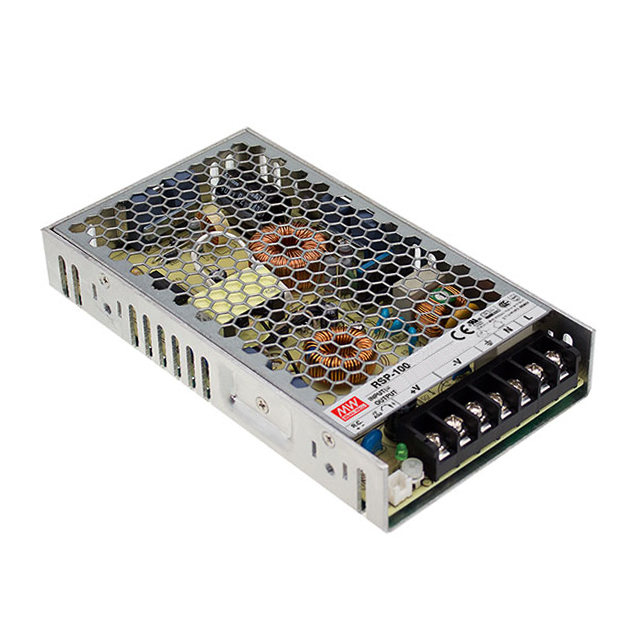

RSP-100-13.5

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 13.5V 101W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 13.5V 101W

Technical Specifications

Parameters and characteristics for this part

Specification	RSP-100-13.5

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, CB, CCC, CE
Efficiency	86.5 %
Features	PFC, Remote On/Off, Universal Input, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	101 W
Size / Dimension [x]	7.05 in
Size / Dimension [x]	179 mm
Size / Dimension [y]	99 mm
Size / Dimension [y]	3.9 in
Size / Dimension [z]	1.18 in
Size / Dimension [z]	30 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	13.5 V

Part	Mounting Type	Minimum Load Required	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Number of Outputs	Approval Agency	Applications	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type
MEAN WELL USA Inc. RSP-100-13.5	Chassis Mount		13.5 V	7.05 in	1.18 in	99 mm	179 mm	30 mm	3.9 in	86.5 %	101 W	85 VAC 120 VDC	264 VAC 370 VDC	4000 V	1	CB CCC CE cURus TUV	ITE (Commercial)	Adjustable Output PFC Remote On/Off Universal Input	70 °C	-30 °C	Enclosed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 13.5V 85 ~ 264 VAC, 120 ~ 370 VDC Input
