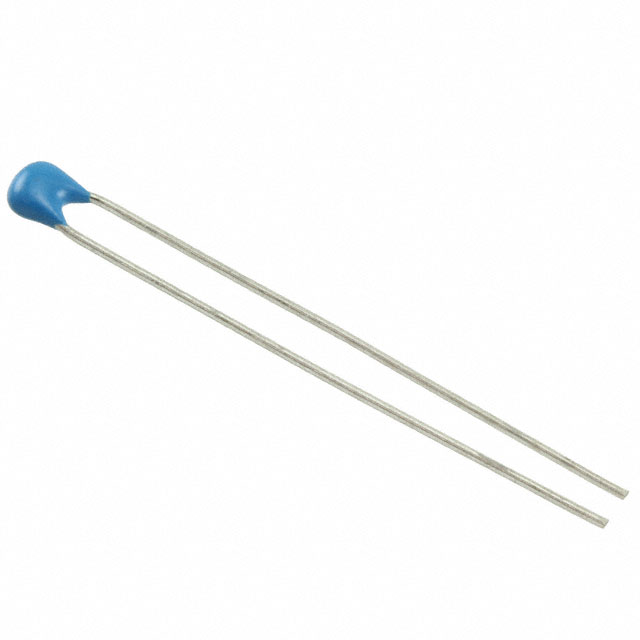

RPER72A334K5B1C03B

Obsolete

Murata Power Solutions Inc.

CAP CER 0.33UF 100V X7R RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RPER72A334K5B1C03B

Obsolete

Murata Power Solutions Inc.

CAP CER 0.33UF 100V X7R RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RPER72A334K5B1C03B

Applications	General Purpose
Capacitance	0.33 µF
Height - Seated (Max) [Max]	0.354 in
Height - Seated (Max) [Max]	9 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.295 in
Size / Dimension [x]	7.5 mm
Size / Dimension [y]	4 mm
Size / Dimension [y]	0.157 in
Temperature Coefficient	X7R
Tolerance	10 %
Voltage - Rated	100 V

RPER72A Series

Part	Mounting Type	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Applications	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Lead Style	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Murata Power Solutions Inc. RPER72A152K2P1A03B	Through Hole	1500 pF	0.197 in	0.098 in	5 mm	2.5 mm	100 V	General Purpose	X7R	-55 °C	125 °C	Formed Leads - Kinked	Radial	0.197 in	5 mm	0.098 in	2.5 mm	10 %
Murata Power Solutions Inc. RPER72A222K2M1A03A	Through Hole	2200 pF	0.197 in	0.098 in	5 mm	2.5 mm	100 V	General Purpose	X7R	-55 °C	125 °C	Formed Leads - Kinked	Radial	0.197 in	5 mm	0.197 in	5 mm	10 %
Murata Power Solutions Inc. RPER72A473K2M1C03A	Through Hole		0.197 in	0.124 "	5 mm	3.15 mm	100 V	General Purpose	X7R	-55 °C	125 °C	Formed Leads - Kinked	Radial			0.197 in	5 mm	10 %	6.3 mm	0.248 in
Murata Power Solutions Inc. RPER72A152K2M2A03A	Through Hole	1500 pF	0.197 in	0.098 in	5 mm	2.5 mm	100 V	General Purpose	X7R	-55 °C	125 °C	Formed Leads - Kinked	Radial	0.197 in	5 mm	0.197 in	5 mm	10 %
Murata Power Solutions Inc. RPER72A821K2P1B03B	Through Hole	820 pF	0.197 in	0.098 in	5 mm	2.5 mm	100 V	General Purpose	X7R	-55 °C	125 °C	Formed Leads - Kinked	Radial	0.197 in	5 mm	0.098 in	2.5 mm	10 %
Murata Power Solutions Inc. RPER72A102K2M1A03A	Through Hole	0.001 µF	0.197 in	0.098 in	5 mm	2.5 mm	100 V	General Purpose	X7R	-55 °C	125 °C	Formed Leads - Kinked	Radial	0.197 in	5 mm	0.197 in	5 mm	10 %
Murata Power Solutions Inc. RPER72A103K2S1A03A	Through Hole	10000 pF	0.197 in	0.124 "	5 mm	3.15 mm	100 V	General Purpose	X7R	-55 °C	125 °C	Formed Leads - Kinked	Radial	0.197 in	5 mm	0.098 in	2.5 mm	10 %
Murata Power Solutions Inc. RPER72A334K5B1C03B	Through Hole	0.33 µF	0.295 in	0.157 in	7.5 mm	4 mm	100 V	General Purpose	X7R	-55 °C	125 °C	Straight	Radial			0.197 in	5 mm	10 %	9 mm	0.354 in
Murata Power Solutions Inc. RPER72A682K2S1A03A	Through Hole	6800 pF	0.197 in	0.098 in	5 mm	2.5 mm	100 V	General Purpose	X7R	-55 °C	125 °C	Formed Leads - Kinked	Radial	0.197 in	5 mm	0.098 in	2.5 mm	10 %
Murata Power Solutions Inc. RPER72A223K2K1A03B	Through Hole	0.022 µF	0.197 in	0.124 "	5 mm	3.15 mm	100 V	General Purpose	X7R	-55 °C	125 °C	Formed Leads	Radial	0.197 in	5 mm	0.197 in	5 mm	10 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RPER72A Series

0.33 µF ±10% 100V Ceramic Capacitor X7R Radial
