Q-0804J0008108i

Active

Amphenol Custom Cable

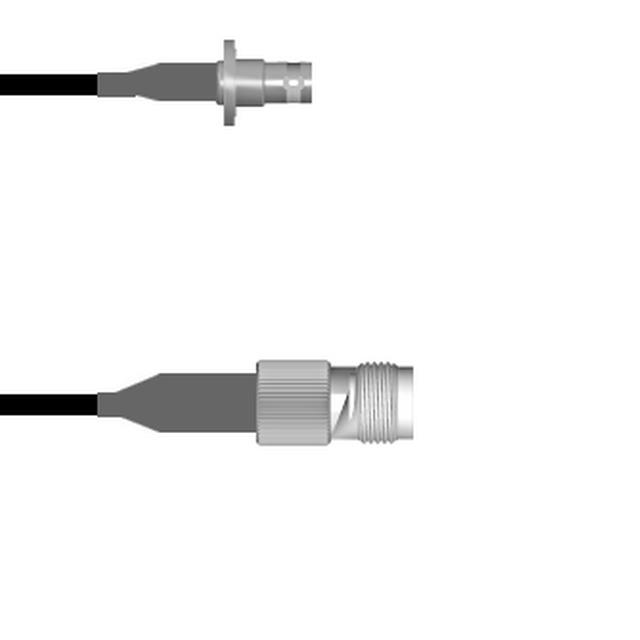

CBL ASSY BNC-TNC JACK-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0804J0008108i

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0804J0008108i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0804J0 Series

Part	2nd Connector	Length	Length	2nd Contact Gender	1st Contact Gender	1st Connector Mounting Feature	1st Connector Mounting Type	Features	1st Connector	Style	Frequency - Max [Max]	Overall Impedance	Color	2nd Connector Mounting Type	Cable Type	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0804J00080.5M	TNC Jack	50 cm	19.69 "	Female	Female	Bulkhead - Front Side Nut	Panel Mount	Shielded	BNC Jack	BNC to TNC	4 GHz	50 Ohms	Black	Free Hanging (In-Line)	RG-58
Amphenol Custom Cable Q-0804J0008108i	TNC Jack	2.7 m	108 in	Female	Female	Bulkhead - Front Side Nut	Panel Mount	Shielded	BNC Jack	BNC to TNC	4 GHz	50 Ohms	Black	Free Hanging (In-Line)	RG-58	9 ft
Amphenol Custom Cable Q-0804J0008012i	TNC Jack	304.8 mm	12 "	Female	Female	Bulkhead - Front Side Nut	Panel Mount	Shielded	BNC Jack	BNC to TNC	4 GHz	50 Ohms	Black	Free Hanging (In-Line)	RG-58
Amphenol Custom Cable Q-0804J0008048i	TNC Jack	1200 mm	48 in	Female	Female	Bulkhead - Front Side Nut	Panel Mount	Shielded	BNC Jack	BNC to TNC	4 GHz	50 Ohms	Black	Free Hanging (In-Line)	RG-58	4 ft
Amphenol Custom Cable Q-0804J00081.5M	TNC Jack	1.5 m	59.1 in	Female	Female	Bulkhead - Front Side Nut	Panel Mount	Shielded	BNC Jack	BNC to TNC	4 GHz	50 Ohms	Black	Free Hanging (In-Line)	RG-58	4.9 ft
Amphenol Custom Cable Q-0804J0008024i	TNC Jack	609.6 mm	24 "	Female	Female	Bulkhead - Front Side Nut	Panel Mount	Shielded	BNC Jack	BNC to TNC	4 GHz	50 Ohms	Black	Free Hanging (In-Line)	RG-58
Amphenol Custom Cable Q-0804J0008018i	TNC Jack			Female	Female	Bulkhead - Front Side Nut	Panel Mount	Shielded	BNC Jack	BNC to TNC	4 GHz	50 Ohms	Black	Free Hanging (In-Line)	RG-58		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0804J0008072i	TNC Jack	1.8 m	72 in	Female	Female	Bulkhead - Front Side Nut	Panel Mount	Shielded	BNC Jack	BNC to TNC	4 GHz	50 Ohms	Black	Free Hanging (In-Line)	RG-58	6 ft
Amphenol Custom Cable Q-0804J0008060i	TNC Jack	1.5 m	5 '	Female	Female	Bulkhead - Front Side Nut	Panel Mount	Shielded	BNC Jack	BNC to TNC	4 GHz	50 Ohms	Black	Free Hanging (In-Line)	RG-58	5 ft
Amphenol Custom Cable Q-0804J0008.25M	TNC Jack			Female	Female	Bulkhead - Front Side Nut	Panel Mount	Shielded	BNC Jack	BNC to TNC	4 GHz	50 Ohms	Black	Free Hanging (In-Line)	RG-58			250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 83.28
		25	$ 81.64
		50	$ 80.01
		100	$ 78.38
		250	$ 76.75

Description

General part information

Q-0804J0 Series

Cable Assembly Coaxial BNC to TNC RG-58 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
