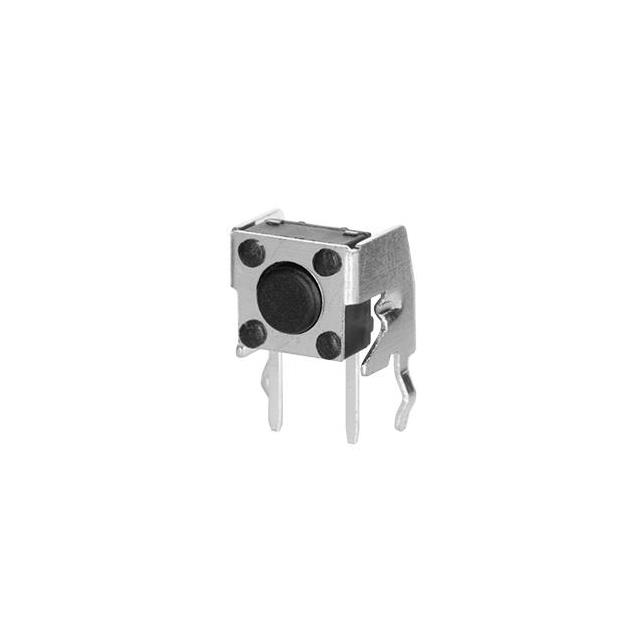

TS11-674-43-BK-100-RA-D

Active

CUI Devices

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TS11-674-43-BK-100-RA-D

Active

CUI Devices

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TS11-674-43-BK-100-RA-D

Actuator Length, Right Angle	4.3 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Orientation	Side Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	100 gf
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

TS11-674 Series

Part	Switch Travel	Switch Function	Actuator Length, Right Angle	Actuator Type	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Rating @ Voltage	Actuator Orientation	Termination Style	Illumination	Actuator Material	Circuit	Actuator Length, Right Angle [custom]	Operating Force
CUI Devices TS11-674-43-BK-160-RA-D	0.25 mm	Off-Mom	4.3 mm	Standard	80000 Cycles	-30 ░C	80 C	Through Hole Right Angle	0.05 A 12 VDC	Side Actuated	PC Pin	Non-Illuminated	Nylon 6/6 Polyamide (PA66)	SPST-NO
CUI Devices TS11-674-105-BK-100-RA-D	0.25 mm	Off-Mom		Standard	100000 Cycles	-30 ░C	80 C	Through Hole Right Angle	0.05 A 12 VDC	Side Actuated	PC Pin	Non-Illuminated	Nylon 6/6 Polyamide (PA66)	SPST-NO	10.5 mm	100 gf
CUI Devices TS11-674-65-BK-260-RA-D	0.25 mm	Off-Mom	6.5 mm	Standard	60000 Cycles	-30 ░C	80 C	Through Hole Right Angle	0.05 A 12 VDC	Side Actuated	PC Pin	Non-Illuminated	Nylon 6/6 Polyamide (PA66)	SPST-NO		260 gf
CUI Devices TS11-674-95-BK-100-RA-D	0.25 mm	Off-Mom	9.5 mm	Standard	100000 Cycles	-30 ░C	80 C	Through Hole Right Angle	0.05 A 12 VDC	Side Actuated	PC Pin	Non-Illuminated	Nylon 6/6 Polyamide (PA66)	SPST-NO		100 gf
CUI Devices TS11-674-43-BK-100-RA-D	0.25 mm	Off-Mom	4.3 mm	Standard	100000 Cycles	-30 ░C	80 C	Through Hole Right Angle	0.05 A 12 VDC	Side Actuated	PC Pin	Non-Illuminated	Nylon 6/6 Polyamide (PA66)	SPST-NO		100 gf
CUI Devices TS11-674-105-BK-100-RA-D	0.25 mm	Off-Mom		Standard	100000 Cycles	-30 ░C	80 C	Through Hole Right Angle	0.05 A 12 VDC	Side Actuated	PC Pin	Non-Illuminated	Nylon 6/6 Polyamide (PA66)	SPST-NO	10.5 mm	100 gf
CUI Devices TS11-674-105-BK-260-RA-D	0.25 mm	Off-Mom		Standard	60000 Cycles	-30 ░C	80 C	Through Hole Right Angle	0.05 A 12 VDC	Side Actuated	PC Pin	Non-Illuminated	Nylon 6/6 Polyamide (PA66)	SPST-NO	10.5 mm	260 gf
CUI Devices TS11-674-95-BK-260-RA-D	0.25 mm	Off-Mom	9.5 mm	Standard	60000 Cycles	-30 ░C	80 C	Through Hole Right Angle	0.05 A 12 VDC	Side Actuated	PC Pin	Non-Illuminated	Nylon 6/6 Polyamide (PA66)	SPST-NO		260 gf
CUI Devices TS11-674-65-BK-100-RA-D	0.25 mm	Off-Mom	6.5 mm	Standard	100000 Cycles	-30 ░C	80 C	Through Hole Right Angle	0.05 A 12 VDC	Side Actuated	PC Pin	Non-Illuminated	Nylon 6/6 Polyamide (PA66)	SPST-NO		100 gf
CUI Devices TS11-674-95-BK-160-RA-D	0.25 mm	Off-Mom	9.5 mm	Standard	80000 Cycles	-30 ░C	80 C	Through Hole Right Angle	0.05 A 12 VDC	Side Actuated	PC Pin	Non-Illuminated	Nylon 6/6 Polyamide (PA66)	SPST-NO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.15
		10	$ 0.14
		25	$ 0.14
		100	$ 0.12
		250	$ 0.12
		500	$ 0.11
		1000	$ 0.09
		3000	$ 0.09
		5000	$ 0.08

Description

General part information

TS11-674 Series

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
