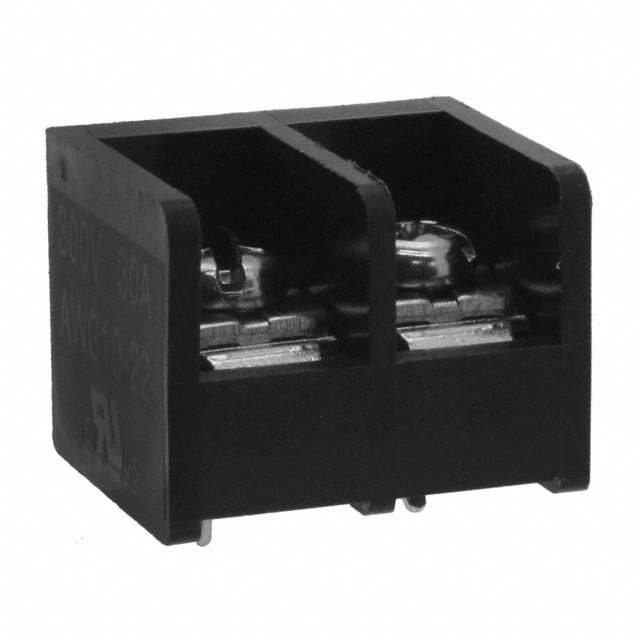

OSTYK55102030

Active

On Shore Technology Inc.

CONN BARRIER STRIP 2CIRC 0.433"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTYK55102030

Active

On Shore Technology Inc.

CONN BARRIER STRIP 2CIRC 0.433"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTYK55102030

Barrier Type	3 Wall (Tri)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	30 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	2
Number of Rows	1
Number of Wire Entries	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	11 mm
Pitch [x]	0.433 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Nickel
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	10 AWG

OSTYK55 Series

Part	Color	Bottom Termination	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Screw Finish	Barrier Type	Pitch [x]	Pitch [x]	Mounting Type	Material - Insulation	Material Flammability Rating	Number of Rows	Top Termination	Number of Circuits	Number of Wire Entries	Operating Temperature [Min]	Operating Temperature [Max]	Terminal Screw Material	Current Rating (Amps)	Voltage Rating	Terminal Block Type	Bottom Termination
On Shore Technology Inc. OSTYK55310030	Black	Solder Eyelets	22 AWG	10 AWG	Nickel	3 Wall (Tri)	11 mm	0.433 in	Chassis Panel	Thermoplastic	UL94 V-0	1	Screws with Captive Plate	10	10	-40 °C	105 ░C	Steel	30 A	300 VDC	Barrier Block
On Shore Technology Inc. OSTYK55102030	Black	PC Pin	22 AWG	10 AWG	Nickel	3 Wall (Tri)	11 mm	0.433 in	Through Hole	Polyamide (PA66) Nylon 6/6	UL94 V-0	1	Screws with Captive Plate	2	2	-40 °C	105 ░C	Steel	30 A	300 VDC	Barrier Block
On Shore Technology Inc. OSTYK55315030	Black	Solder Eyelets	22 AWG	10 AWG	Nickel	3 Wall (Tri)	11 mm	0.433 in	Chassis Panel	Thermoplastic	UL94 V-0	1	Screws with Captive Plate	15	15	-40 °C	105 ░C	Steel	30 A	300 VDC	Barrier Block
On Shore Technology Inc. OSTYK55414030	Black	PC Pin	22 AWG	12 AWG	Nickel	3 Wall (Tri)	11 mm	0.433 in	Through Hole Right Angle	Thermoplastic	UL94 V-0	1	Screws with Captive Plate	14	14	-40 °C	105 ░C	Steel	30 A	300 VDC	Barrier Block
On Shore Technology Inc. OSTYK55109030	Black	PC Pin	22 AWG	10 AWG	Nickel	3 Wall (Tri)	11 mm	0.433 in	Through Hole	Polyamide (PA66) Nylon 6/6	UL94 V-0	1	Screws with Captive Plate		9	-40 °C	105 ░C	Steel	30 A	300 VDC	Barrier Block
On Shore Technology Inc. OSTYK55402030	Black	PC Pin	22 AWG	12 AWG	Nickel	3 Wall (Tri)	11 mm	0.433 in	Through Hole Right Angle	Thermoplastic	UL94 V-0	1	Screws with Captive Plate	2	2	-40 °C	105 ░C	Steel	30 A	300 VDC	Barrier Block
On Shore Technology Inc. OSTYK55504030	Black	PC Pin	22 AWG	12 AWG	Nickel	3 Wall (Tri)	11 mm	0.433 in	Through Hole	Thermoplastic	UL94 V-0	1	Screws with Captive Plate	4	4	-40 °C	105 ░C	Steel	30 A	300 VDC	Barrier Block
On Shore Technology Inc. OSTYK55217030	Black	Quick Connect	22 AWG	10 AWG	Nickel	3 Wall (Tri)	11 mm	0.433 in	Chassis Panel	Thermoplastic	UL94 V-0	1	Screws with Captive Plate	17	17	-40 °C	105 ░C	Steel	30 A	300 VDC	Barrier Block	0.187 in
On Shore Technology Inc. OSTYK55220030	Black	Quick Connect	22 AWG	10 AWG	Nickel	3 Wall (Tri)	11 mm	0.433 in	Chassis Panel	Thermoplastic	UL94 V-0	1	Screws with Captive Plate	20	20	-40 °C	105 ░C	Steel	30 A	300 VDC	Barrier Block	0.187 in
On Shore Technology Inc. OSTYK55413030	Black	PC Pin	22 AWG	12 AWG	Nickel	3 Wall (Tri)	11 mm	0.433 in	Through Hole Right Angle	Thermoplastic	UL94 V-0	1	Screws with Captive Plate	13	13	-40 °C	105 ░C	Steel	30 A	300 VDC	Barrier Block

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.59
		10	$ 1.12
		25	$ 1.04
		50	$ 0.94
		100	$ 0.94
		250	$ 0.79
		500	$ 0.75
		1000	$ 0.67
		5000	$ 0.54

Description

General part information

OSTYK55 Series

2 Circuit 0.433" (11.00mm) Barrier Block Connector Screws with Captive Plate
