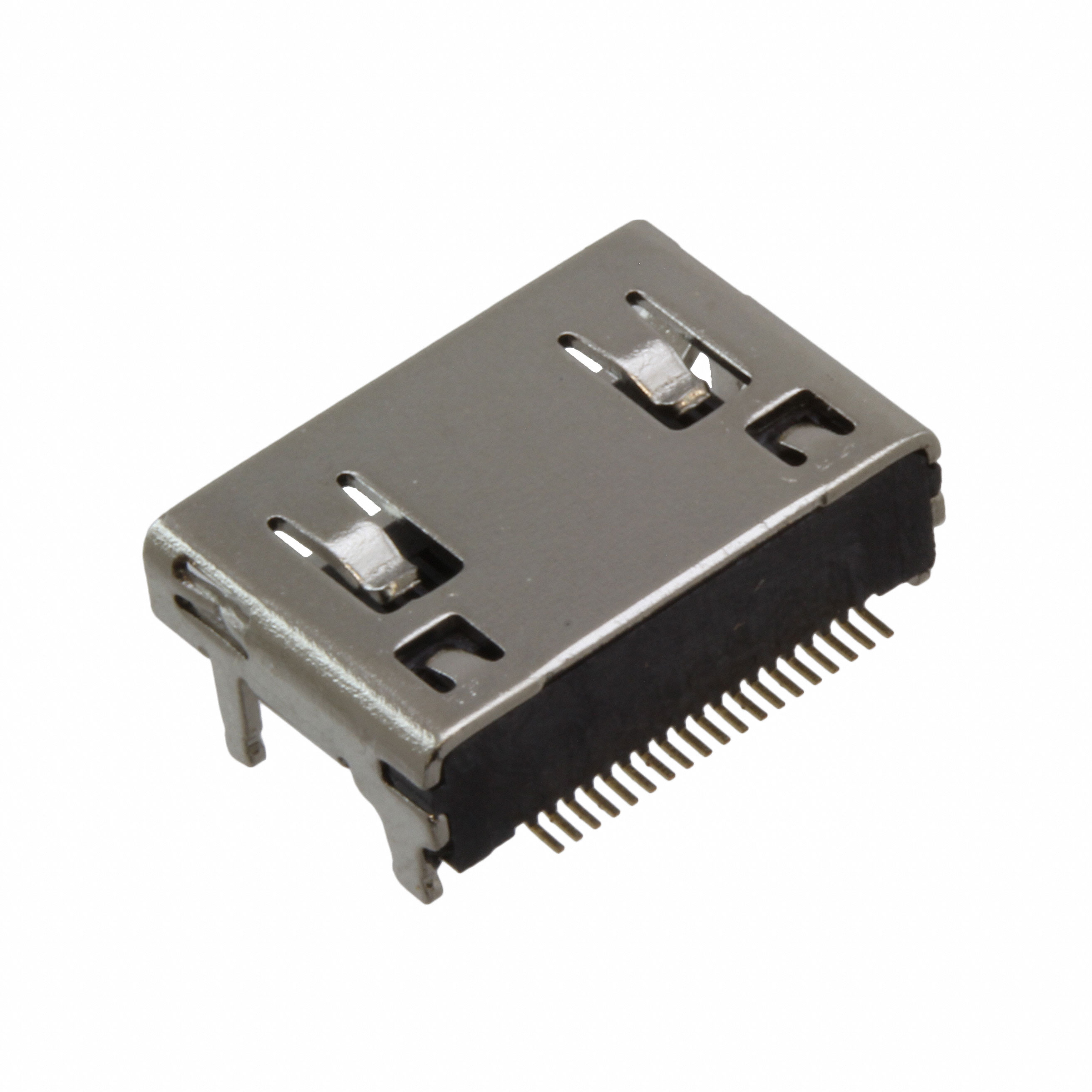

2001-1-2-21-00-BK
ActiveCnC Tech, LLC
CONN RCPT MINI HDMI 19POS SMD RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2001-1-2-21-00-BK |
|---|---|
| Connector Type | HDMI - Mini |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.5 A |
| Features | Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 5000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts [custom] | 19 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Shell/Shielding Material | Copper Alloy |
| Termination | Solder |
| Voltage - Rated | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.94 | |
| 10 | $ 1.69 | |||
| 25 | $ 1.61 | |||
| 50 | $ 1.58 | |||
| 100 | $ 1.51 | |||
| 250 | $ 1.36 | |||
| 500 | $ 1.25 | |||
| Digi-Reel® | 1 | $ 1.94 | ||
| 10 | $ 1.69 | |||
| 25 | $ 1.61 | |||
| 50 | $ 1.58 | |||
| 100 | $ 1.51 | |||
| 250 | $ 1.36 | |||
| 500 | $ 1.25 | |||
| Tape & Reel (TR) | 1000 | $ 1.16 | ||
| 2000 | $ 1.08 | |||
| 3000 | $ 1.04 | |||
| 5000 | $ 0.99 | |||
| 7000 | $ 0.96 | |||
| 10000 | $ 0.95 | |||
Description
General part information
2001-1-2 Series
HDMI - Mini Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
