AWLP 10/3,2-G
ActiveAssmann WSW Components
CONN DIP HDR IDC 10POS VERT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

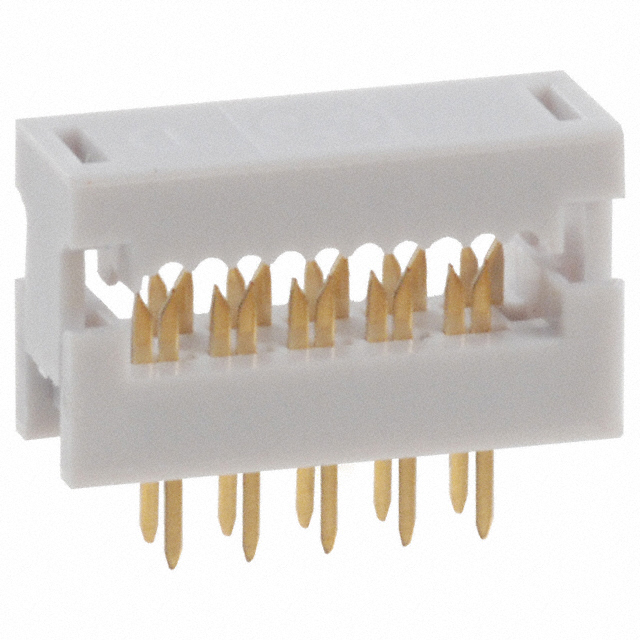

AWLP 10/3,2-G
ActiveAssmann WSW Components
CONN DIP HDR IDC 10POS VERT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AWLP 10/3,2-G |
|---|---|
| Board-Side Pitch | 0.1 in |
| Board-Side Pitch | 2.54 mm |
| Cable Pitch | 1.27 mm |
| Cable Pitch | 0.05 in |
| Cable Termination | IDC |
| Color | Gray |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Gold |
| Features | Feed Through |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
AWLP 10 Series
| Part | Number of Rows | Cable Pitch | Cable Pitch | Row Spacing [x] | Row Spacing | Mounting Type | Cable Termination | Features | Connector Type | Color | Contact Finish | Board-Side Pitch | Board-Side Pitch | Number of Positions | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Assmann WSW Components | 2 | 1.27 mm | 0.05 in | 0.1 in | 2.54 mm | Through Hole | IDC | Feed Through | DIP Header Ribbon Cable | Gray | Gold | 0.1 in | 2.54 mm | 10 | All |
Assmann WSW Components | 2 | 1.27 mm | 0.05 in | 0.1 in | 2.54 mm | Through Hole | IDC | Feed Through | DIP Header Ribbon Cable | Gray | Tin | 0.1 in | 2.54 mm | 10 | All |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.05 | |
| 10 | $ 0.88 | |||
| 25 | $ 0.85 | |||
| 40 | $ 0.83 | |||
| 180 | $ 0.79 | |||
| 360 | $ 0.72 | |||
| 540 | $ 0.65 | |||
| 1080 | $ 0.58 | |||
| 2520 | $ 0.52 | |||
Description
General part information
AWLP 10 Series
10 Position Ribbon Cable, DIP Header Connector Gray IDC Through Hole
