9GT0612G4002

Active

Sanyo Denki America Inc.

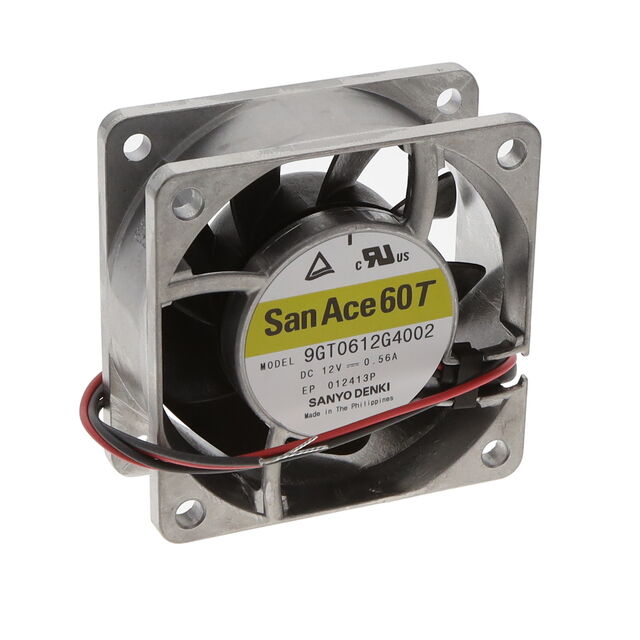

FAN AXIAL 60X25MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Weight	Weight	Lifetime @ Temp.	Fan Type	RPM	Noise	Voltage - Rated	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Width [y]	Bearing Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Air Flow	Air Flow	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Static Pressure	Static Pressure	Material - Blade	Termination	Features
Sanyo Denki America Inc. 9GT0612G4002	0.56 A	0.222 lb	100.7 g	40000 Hrs	Tubeaxial	10000 RPM	52 dB	12 VDC	CSA TUV UL	60 mm	60 mm	25 mm	Ball	-40 °C	-40 °C	85 °C	85 °C	1.25 mł/min	44.5 CFM	Aluminum	10.2 VDC	13.8 VDC	6.72 W	241.6 Pa	0.97 in H2O	Plastic	2 Wire Leads
Sanyo Denki America Inc. 9GT0612G4001	0.56 A	0.222 lb	100.7 g	40000 Hrs	Tubeaxial	10000 RPM	52 dB	12 VDC	CSA TUV UL	60 mm	60 mm	25 mm	Ball	-40 °C	-40 °C	85 °C	85 °C	1.25 mł/min	44.5 CFM	Aluminum	10.2 VDC	13.8 VDC	6.72 W	241.6 Pa	0.97 in H2O	Plastic	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 44.5 CFM (1.25mł/min) 2 Wire Leads
