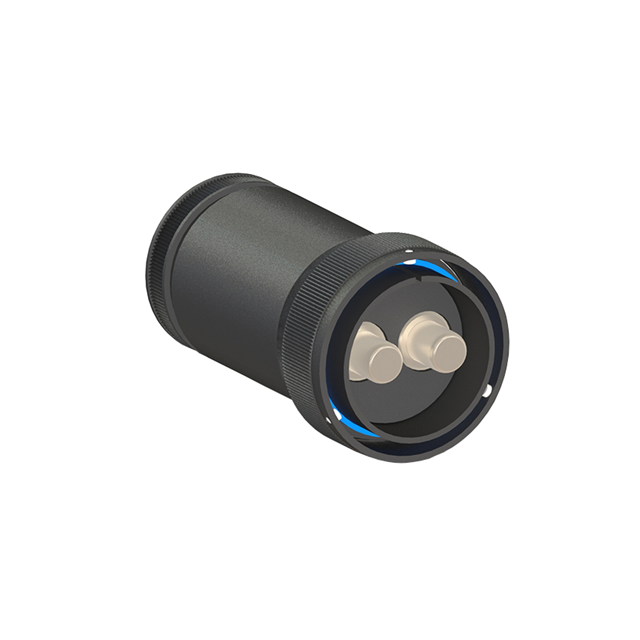

PXP9010/02/P/1

Active

BULGIN LIMITED

CONN PLUG 2POS W/PINS 4/0

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN PLUG 2POS W/PINS 4/0

Technical Specifications

Parameters and characteristics for this part

Specification	PXP9010/02/P/1

Cable Opening [diameter]	48.26 mm
Cable Opening [diameter]	1.9 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyoxymethylene (POM), Acetal
Shielding	Unshielded
Termination	Crimp

Part	Shielding	Shell Material	Mounting Type	Primary Material	Cable Opening [diameter]	Cable Opening [diameter]	Color	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Fastening Type	Connector Type	Ingress Protection	Features	Contact Finish - Mating	Number of Positions	Contact Material	Termination
BULGIN LIMITED PXP9010/02/P/1	Unshielded	Acetal Polyoxymethylene (POM)	Free Hanging (In-Line)	Plastic	48.26 mm	1.9 in	Black	Keyed	-55 °C	125 °C	UL94 V-0	Bayonet Lock	Male Pins Plug	IP68 - Dust Tight Waterproof	Backshell Coupling Nut	Silver	2	Copper Alloy	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Power) Position Circular Connector Plug, Male Pins Crimp
