ASP-103612-02
ActiveSamtec Inc.

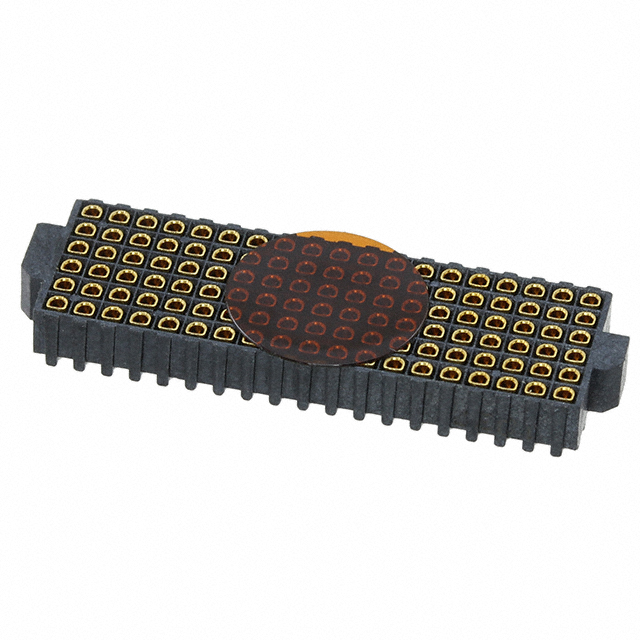

CONN ARRAY RCPT 114POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASP-103612-02
ActiveSamtec Inc.
CONN ARRAY RCPT 114POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASP-103612-02 |
|---|---|
| Connector Type | Female Sockets, Array |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Height Above Board | 0.13 in |
| Height Above Board | 3.3 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 114 |
| Number of Rows | 6 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 37.90 | |
| 10 | $ 29.30 | |||
| 25 | $ 26.56 | |||
| 50 | $ 24.72 | |||
| 100 | $ 23.05 | |||
| 250 | $ 21.08 | |||
| 500 | $ 19.79 | |||
Description
General part information
103612-02 Series
114 Position Connector Array, Female Sockets Surface Mount Gold
