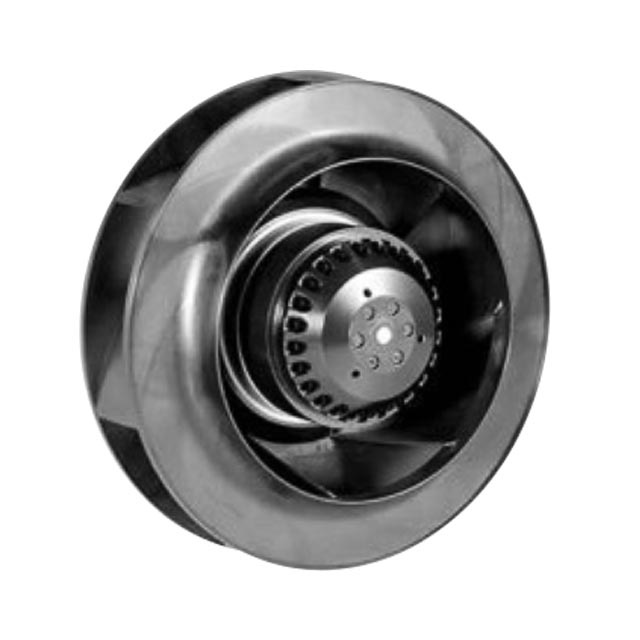

OAB22569-22-1WB

Active

Orion Fans

FAN IMP MTRZD 225X69MM 230VAC W/

Search across all available documentation for this part.

Active

Orion Fans

FAN IMP MTRZD 225X69MM 230VAC W/

Technical Specifications

Parameters and characteristics for this part

Specification	OAB22569-22-1WB

Air Flow	15.4 mł/min
Air Flow	550 CFM
Bearing Type	Ball
Current Rating (Amps)	0.56 A
Fan Type	Motorized Impellers
Features	Permanent Split Capacitor Motor
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	40000 Hrs
Material - Blade	Thermoplastic
Material - Frame	Aluminum
Noise	72 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	125 W
RPM	2950 RPM
Size / Dimension	Round
Size / Dimension [diameter]	255 mm
Static Pressure	2.305 in H2O
Static Pressure	574.2 Pa
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Weight	5.1 lbs
Weight	2.3 kg
Width [x]	69 mm

Part	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Ingress Protection	Voltage - Rated	Lifetime @ Temp.	Termination	Power (Watts)	Size / Dimension	Size / Dimension [diameter]	Width [x]	RPM	Bearing Type	Air Flow	Air Flow	Static Pressure	Static Pressure	Weight	Weight	Noise	Material - Frame	Features	Material - Blade	Current Rating (Amps)
Orion Fans OAB22569-22-1WB	Motorized Impellers	60 °C	60 °C	-40 °C	-40 °C	IP55 - Dust Protected Water Resistant	230 VAC	40000 Hrs	4 Wire Leads	125 W	Round	255 mm	69 mm	2950 RPM	Ball	15.4 mł/min	550 CFM	2.305 in H2O	574.2 Pa	5.1 lbs	2.3 kg	72 dB(A)	Aluminum	Permanent Split Capacitor Motor	Thermoplastic	0.56 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	8	$ 143.34

General part information

Fan Motorized Impellers 230VAC Round - 255mm Dia Ball 550.0 CFM (15.40m³/min) 4 Wire Leads
