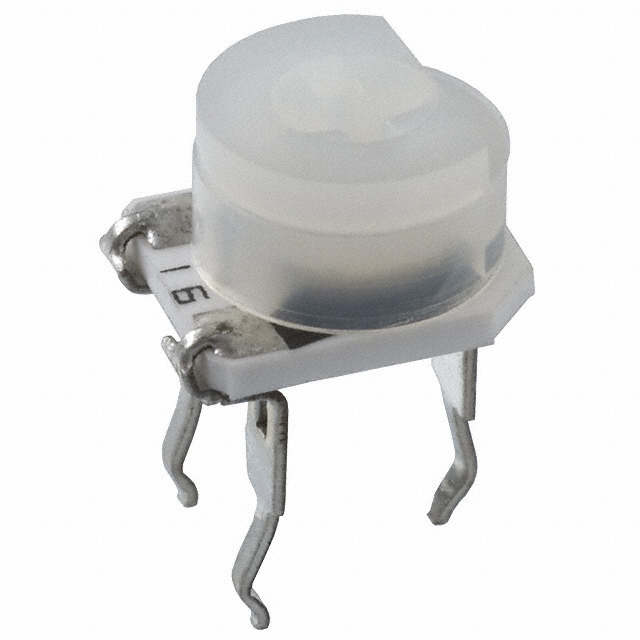

TC86F-1-105

Obsolete

Bourns Inc.

TRIMMER 1M OHM 0.3W PC PIN TOP

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TRIMMER 1M OHM 0.3W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Tolerance	Number of Turns	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Temperature Coefficient	Resistance	Adjustment Type	Power (Watts)	Termination Style	Resistive Material
Bourns Inc. TC86F-1-105	Through Hole	20 %	1	7.7 mm	0.303 in	0.268 in	6.8 mm	250 ppm/°C	1 MOhms	Top Adjustment	300 mW	PC Pins	Cermet
Bourns Inc. TC86F-1-504	Through Hole	20 %	1	7.7 mm	0.303 in	0.268 in	6.8 mm	250 ppm/°C		Top Adjustment	300 mW	PC Pins	Cermet
Bourns Inc. TC86F-1-503	Through Hole	20 %	1	7.7 mm	0.303 in	0.268 in	6.8 mm	250 ppm/°C	50 kOhms	Top Adjustment	300 mW	PC Pins	Cermet
Bourns Inc. TC86F-1-204	Through Hole	20 %	1	7.7 mm	0.303 in	0.268 in	6.8 mm	250 ppm/°C	200000 Ohms	Top Adjustment	300 mW	PC Pins	Cermet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 MOhms 0.3W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
