CSSPM1.23-KTLP-W3-0-350-R18
Activeams-OSRAM USA INC.

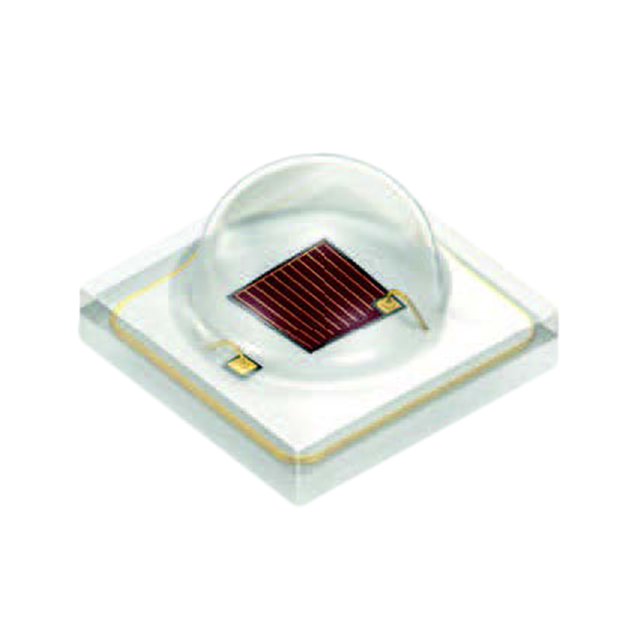

LED OSLON SSL120 AMBER 617NM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSSPM1.23-KTLP-W3-0-350-R18
Activeams-OSRAM USA INC.
LED OSLON SSL120 AMBER 617NM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSSPM1.23-KTLP-W3-0-350-R18 |
|---|---|
| Color | Amber |
| Current - Max [Max] | 1 A |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] [z] | 1.76 mm |
| Height - Seated (Max) [Max] [z] | 0.069 in |
| Lumens/Watt @ Current - Test | 148 lm/W |
| Luminous Flux @ Current/Temperature | 109 lm |
| Luminous Flux @ Current/Temperature [Max] | 121 lm |
| Luminous Flux @ Current/Temperature [Min] | 97 lm |
| Mounting Type | Surface Mount |
| Package / Case | 1212 |
| Package / Case | 3030 Metric |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [custom] | 5.3 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength | 617 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.05 | |
| Digi-Reel® | 1 | $ 1.05 | ||
| Tape & Reel (TR) | 1200 | $ 0.70 | ||
| 3000 | $ 0.67 | |||
| 6000 | $ 0.65 | |||
| 15000 | $ 0.64 | |||
Description
General part information
CSSPM1.23 Series
LED Lighting Color OSLON® SSL 120 Amber 617nm (Typ) 1212 (3030 Metric)
