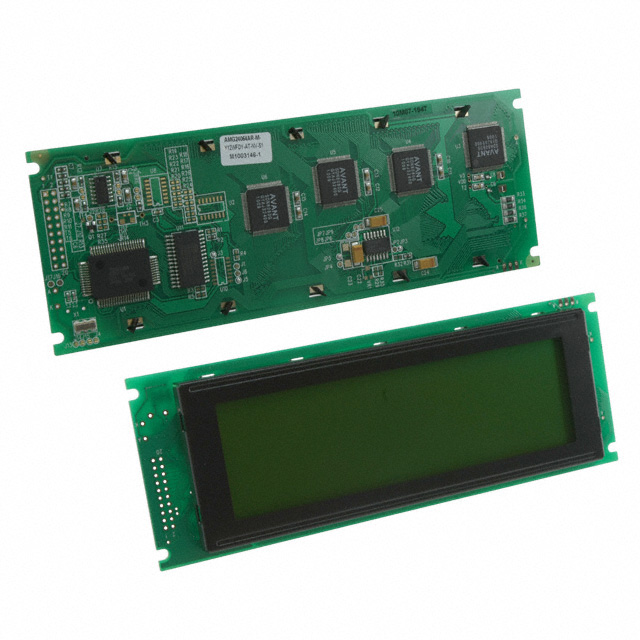

MOP-GL24064A-BYFY-22N-3IN

Active

Matrix Orbital

GRAPHIC PARALLEL LIQUID CRYSTAL DISPLAY

Search across all available documentation for this part.

Active

Matrix Orbital

GRAPHIC PARALLEL LIQUID CRYSTAL DISPLAY

Technical Specifications

Parameters and characteristics for this part

Part	Interface	Viewing Area [z]	Viewing Area [y]	Graphics Color	Dot Pitch [y]	Dot Pitch [x]	Backlight	Display Type	Dot Size [custom]	Dot Size [custom]	Dot Pixels [y]	Dot Pixels [x]	Background Color	Display Mode	Dot Size [y]	Dot Size [x]	Viewing Area [x]
Matrix Orbital MOP-GL24064A-BBTW-22N-3IN	Parallel	39.2 mm	132.2 mm	White	0.53 mm	0.53 mm	LED - Blue	LCD - Monochrome	0.49 mm	0.49 mm	64	240 pixels	Blue
Matrix Orbital MOP-GL24064R-BBTW-22N-3IN	Parallel	28.4 mm		White	0.39 mm	0.39 mm	LED - Blue	LCD - Monochrome			64	240 pixels	Blue	Transmissive	0.36 mm	0.36 mm	98 mm
Matrix Orbital MOP-GL24064A-BGFW-22N-3IN	Parallel	39.2 mm	132.2 mm	Gray	0.53 mm	0.53 mm	LED - White	LCD - Monochrome	0.49 mm	0.49 mm	64	240 pixels	White
Matrix Orbital MOP-GL24064R-BSSX-22N-3IN	Parallel	28.4 mm		Blue Green Red	0.39 mm	0.39 mm	Blue Green LED Red	TFT - Color			64	240 pixels	Black	Transmissive	0.36 mm	0.36 mm	98 mm
Matrix Orbital MOP-GL24064R-BWFW-22N-3IN	Parallel	28.4 mm		Gray	0.39 mm	0.39 mm	LED - White	LCD - Monochrome			64	240 pixels	White	Transmissive	0.36 mm	0.36 mm	98 mm
Matrix Orbital MOP-GL24064A-BYFY-22N-3IN	Parallel 8-Bit	39.2 mm	132.2 mm		0.53 mm	0.53 mm		STN - Super-Twisted Nematic	0.49 mm	0.49 mm	64	240 pixels	Yellow/Green	Transflective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transflective STN - Super-Twisted Nematic Parallel, 8-Bit 240 x 64
