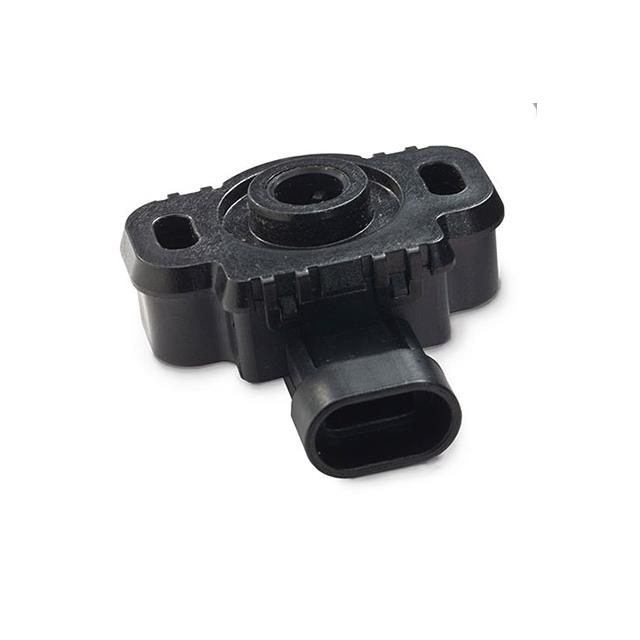

9863R5KL2.0

Active

Sensata-BEI Sensors

SENSOR ROTARY 120 DEG CONNECTOR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

SENSOR ROTARY 120 DEG CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	9863R5KL2.0

Actuator Type	Hole for Shaft
For Measuring	Rotary Position
Linearity	2 %
Mounting Type	Chassis Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	Resistive
Package / Case	Box with Connector
Resistance	5 kOhms
Resistance Tolerance	20 %
Rotation Angle - Electrical, Mechanical [Max] [custom]	85 °
Rotation Angle - Electrical, Mechanical [Max] [custom]	120 °
Rotation Angle - Electrical, Mechanical [Min] [custom]	0 °
Rotation Angle - Electrical, Mechanical [Min] [custom]	0 °
Technology	Resistive
Termination Style	Connector

Part	Resistance Tolerance	Package / Case	Linearity	Rotation Angle - Electrical, Mechanical [Min] [custom]	Rotation Angle - Electrical, Mechanical [Min] [custom]	Rotation Angle - Electrical, Mechanical [Max] [custom]	Rotation Angle - Electrical, Mechanical [Max] [custom]	For Measuring	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Resistance	Output	Technology
Sensata-BEI Sensors 9863R5KL2.0	20 %	Box with Connector	2 %	0 °	0 °	85 °	120 °	Rotary Position	Connector	Hole for Shaft	125 °C	-40 °C	Chassis Mount	5 kOhms	Resistive	Resistive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Resistive Sensor Rotary Position Hole for Shaft Connector
